Power Restored: We fly the MD 530N

For decades, the MD 500 series has been recognized for agility, durability, and versatility. Yet for all of its strengths, the NOTAR-equipped 520N/500N variants carried a reputation for being underpowered in hot and high environments. The Rolls-Royce C20 engine, standard in those models, left operators frustrated when density altitude rose and payloads shrank. That shortfall defined the aircraft for years, despite the inherent safety and noise advantages of the NOTAR system.

Now, MD Helicopters is changing that narrative. Under president and CEO Ryan Weeks, the company has launched an upgrade that replaces the aging C20 with the more capable Rolls-Royce C30 engine, giving the aircraft new life as the MD 530N. When asked why this upgrade, Weeks replied, “The short answer is, our customers are asking for it.

“MD realized early on that the 520N didn’t catch on the way we had hoped, and a big part of that was the engine,” he continued. “It just didn’t have enough power for hot-and-high operations. So here we are, 30 years later, going back to what was actually on the drawing board and flight-tested long ago.”

What may surprise many is that the 530N isn’t a new concept. Weeks explains that during the initial development of the NOTAR series in the late 1980s, engineers tested the aircraft extensively with the C30 engine. “We actually spent more time flying it with the C30 in it than we did with the C20,” he said. “But for reasons lost to history, maybe concerns about cannibalizing new F-model deliveries, we went with the smaller engine. Looking back, that was probably a mistake.”

That choice defined the 520N/500N fleet for the next three decades. The NOTAR system delivered unmatched safety and noise reductions, but pilots often found themselves staring nervously at their TOT (turbine outlet temperature) gauge in hot weather, waiting for limits to appear. The 530N upgrade aims to erase those concerns, finally aligning the aircraft’s innovative tail design with an engine that can keep up.

Engineering the NOTAR Advantage

While the C30 provides the power, the defining feature of the 530N remains its NOTAR system. Ramon Moro, MD’s director of engineering, describes it as “a circulation control device” that manipulates airflow around the boom. “Think of it like an airplane wing,” he explained. “You speed up flow on one side, slow it down on the other, and that differential generates lift. In our case, it generates anti-torque.”

The system works through two complementary mechanisms. Along the boom are slots that release airflow, creating the Coanda effect that accelerates downwash from the main rotor along one side of the tail. At the same time, a 13-blade fan inside the fuselage pushes air through the boom toward a rotating thruster cone at the tail. Pedal input changes both the fan pitch and the cone’s orientation, directing thrust left or right as needed.

“It’s not a pressurized system, it’s high-volume airflow,” Moro says. “When you put in left pedal, you increase fan pitch and open the thruster to generate thrust to the right. It’s very safe, because there are no exposed blades.”

For Moro, safety is the most compelling part of the NOTAR design. “You don’t have any exposed tail rotor out there,” he said. “We’ve demonstrated dipping the tail into water during tests, and it came right back up. Try that with a conventional tail rotor and you’d be done.”

That safety extends to operations in confined areas. Pilots can back into brush or obstacles without fear of striking a tail rotor. For police departments or search-and-rescue units operating in urban or rugged environments, that margin matters. “It’s that safe,” Moro said. “You can walk right up to the tail and the only thing you’ll feel is some airflow on your face. Otherwise, there’s no hazard.”

MD chief pilot Dennis Banks has flown the upgrade extensively and frames it in operational terms. “Everybody knows, in the winter you were limited by torque, and in the summer you were limited by TOT,” he explained of the MD 520N. “Throwing that C30 in there is going to help the operator. That was always the big complaint. The aircraft was great, the NOTAR system was great, but it was always lacking in power.”

For Banks, eliminating those temperature and power limitations transforms the aircraft’s utility. “With the C30, you’ll never run into a TOT limitation unless you’ve got a sick engine,” he said. “It gives operators a margin they didn’t have before, especially in the hot Phoenix summers when density altitude is high. This upgrade gets them back into a comfort zone where they can operate confidently.”

He also stressed that maintenance costs tilt in operators’ favor. “The long-term maintenance on the C30 is less than that of the C20,” he said. “So not only are you gaining performance, you’re reducing your cost and downtime. That’s a big win for the fleet.”

What the Upgrade Entails

Unlike MD’s “Super D” program, which involved sweeping structural modifications including new rotor blades, tail sections, and gearboxes, the 530N upgrade is refreshingly straightforward. “Really, all that gets upgraded here is the engine and a couple of instruments,” Weeks explained. “You’re just doing the engine swap. It’s simpler, but the performance gains are significant.”

The price tag varies depending on whether operators choose a reconditioned or new engine. With installation and certification, Weeks says a reconditioned C30-powered 530N comes in around $500,000 after core credits. A brand-new engine option raises the total closer to $950,000. For operators weighing return on investment, the math goes beyond performance; it also extends to maintenance.

The new C30’s strength shows up most clearly in extreme environments.

According to Weeks, on a hot day at 45 C, the 530N can perform hovering ground effect operations at 1,100 feet higher pressure altitude than the 520N. At sea level in those same conditions, it can carry 290 pounds more payload. And between 2,500 and 5,200 feet pressure altitude on a 35 C day, operators can expect 210 pounds more payload in hover.

Moro echoes the significance of those numbers. “We went up to Flagstaff in August, where density altitude was over 8,500 feet, and the aircraft handled low-speed controllability without hesitation,” he said. “We even demonstrated stability at 12,000 feet density altitude, something unheard of with the C20.”

Banks agreed: “The C20 left operators staring at the gauges, constantly running into limitations. The C30 eliminates that. It builds in a margin that lets you focus on the mission instead of worrying about the numbers.”

The point is not that the aircraft’s maximum gross weight has increased, on paper it remains 3,350 pounds. Instead, operators can now use that full capability consistently, even in punishing hot-and-high scenarios. “Your useful load goes up across the spectrum,” Weeks emphasized.

“You’re not going to be TOT-limited the way you were before.”

Maintenance: A Bigger Selling Point than Power?

Performance may sell headlines, but for many operators, the bigger story is maintenance. Weeks is candid: “Honestly, I think the maintenance side of the C30 versus the C20 almost eclipses the performance gains.”

One New Zealand operator underscored that point to Weeks. The C20 requires compressor inspections every 300 hours, with case halves often failing before 700 hours, costing tens of thousands of dollars in parts. The C30 stretches that interval to 2,000 hours. Wheel inspections are less frequent and less costly as well, with replacement needs cut nearly in half.

Moro agreed: “You don’t spend as much money on downtime. With the C30, you have an aircraft that’s operational more often and costing less to maintain, while still enjoying all the benefits of the NOTAR system.” Banks puts it more bluntly: “You’re reducing cost and time in maintenance and eliminating that TOT limitation. It’s a double benefit for operators.”

For high-time operators, the arithmetic adds up quickly. Lower maintenance intervals, fewer parts to replace, and reduced downtime can potentially make the cost of the upgrade pay for itself in just a few years.

Beyond performance and maintenance, the 530N carries forward the qualities that made the NOTAR system revolutionary: noise reduction and safety. “We cannot talk about NOTAR without talking about noise signature,” Weeks said.

The C30’s smoother operation promises to reduce noise even further, though the aircraft was already renowned as one of the quietest helicopters ever built. Prince George’s County in Maryland has operated four 520Ns for years without receiving a single noise complaint. “That’s remarkable when you think about flying in the Washington, D.C., area,” Weeks noted.

Moro adds that the quieter profile is not just about public perception, it’s about operational flexibility. “There’s no helicopter out there that can match the noise signature of a NOTAR,” he said. “For law enforcement or emergency operations, that means you can loiter over sensitive areas without drawing attention or complaints.”

Vertical Flight Test

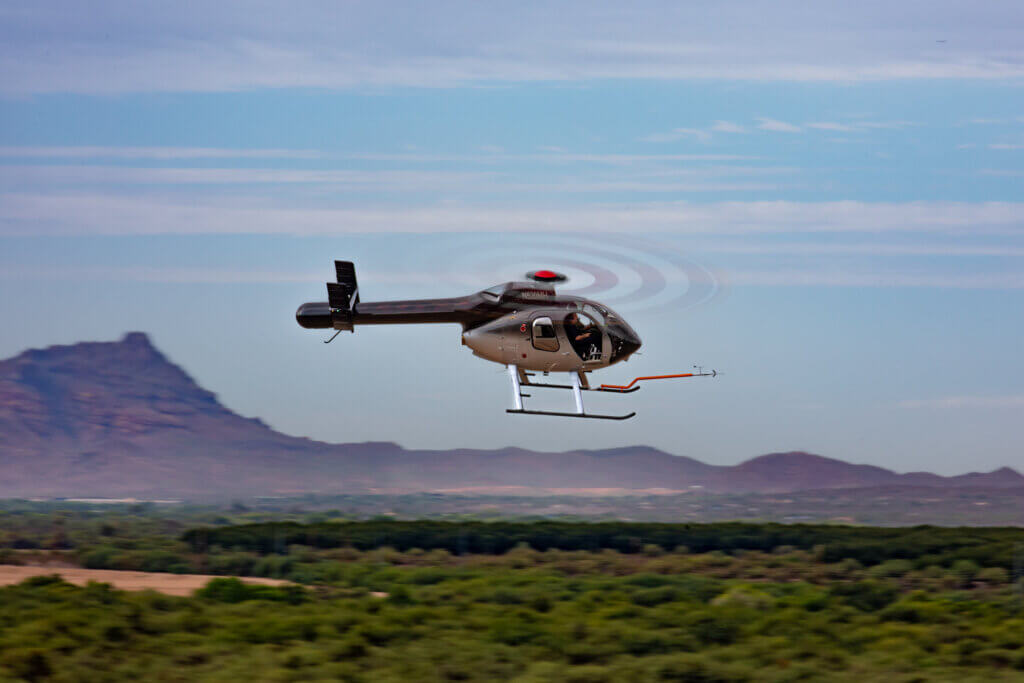

Vertical Magazine was given the opportunity to put the 530N through its paces with MD pilots in Arizona. The flight launched from MD’s Mesa headquarters and tracked north across the Sonoran Desert. In the shimmering heat of a 90 C+ day, the C30’s benefits were unmistakable.

Climbing out of the valley, the helicopter accelerated smoothly, with power reserves to spare. Where the old C20 would have left pilots nursing the TOT gauge, the upgraded 530N had margin in hand. Over the Verde River, tight turns and low passes showed off the NOTAR system’s safety in confined areas. The absence of a tail rotor meant no concern about backing close to vegetation or obstacles. Inside the cabin, the noise level was strikingly low, a reminder of why NOTAR remains unmatched in community acceptance.

The demonstration was more than convincing, it was experiential proof that the upgrade delivered on paper is real in flight. The aircraft not only performed, it inspired confidence.

With flight testing nearly complete, MD is pushing toward FAA certification. As of mid-September, Weeks was hoping for a supplemental type certificate (STC) for the 530N in November. “Now it’s just a matter of paperwork,” he said. “Once we have that certificate in hand, we believe orders will quickly follow.”

Some operators are already committed, with service centers preparing for installations. Others are waiting to see the STC finalized before moving forward. To support sales, MD is considering upgrading one of its own 520Ns to 530N configuration, making it available in Mesa for demonstration flights.

A Place in the Roadmap

The 530N upgrade is part of a broader strategy Weeks has championed since taking the helm at MD Helicopters. Dubbed the “Super” program, it includes modular upgrades across the MD 500 series, from the Super D20B to the upcoming Super D30 and soon the Super E. The goal is to give operators flexibility: start with an engine upgrade, or begin with airframe modifications, and later combine both for maximum performance.

“It’s like the old days of looking at your car catalog and deciding what options you want,” Weeks said. “The modular approach lets operators split costs, gain performance in steps, and customize their aircraft to their needs.”

That approach also positions MD to re-enter production with improved models. If demand for the 530N proves strong, Weeks doesn’t rule out building new NOTAR-equipped helicopters. “It’s effectively the same as the F model, except for the tail,” he explains. “From a manufacturing standpoint, it would not be difficult to restart production.”

Weeks is clear-eyed about the challenges MD has faced in the past, from supply chain struggles to uneven customer support. But he believes the company’s recent track record of delivering on promises, restoring parts availability, and pushing upgrades through certification has restored confidence.

“We promised a roadmap, we put it on paper, and we’re hitting the timelines we set,” he said. “That’s a sign to our customers that we’re here for their business, whether in product support, upgrade programs, or new aircraft.”

The 530N embodies that philosophy: a practical upgrade, rooted in customer demand, that fixes the aircraft’s long-standing weakness while amplifying its enduring strengths.

The MD 530N does not reinvent the NOTAR concept; it fulfills it. By pairing the safety and quiet operation of the ducted tail system with an engine capable of delivering in the toughest environments, MD has finally aligned vision with performance.

For Weeks, the upgrade is about more than numbers on a chart. It’s about giving operators confidence. “We think it’s going to make life a lot easier for pilots who used to stare at the gauges all day,” he said. “They can focus on the mission, not the limits. And when you add in the maintenance savings, the safety, and the noise benefits, we think it’s a compelling package.”

Three decades after its debut, the NOTAR-equipped MD 530N returns in a form truer to its promise. The 530N may not just restore interest in a niche variant, it could reestablish the NOTAR system as a cornerstone of MD’s future.
