manufacturer
Leonardo
configuration
Air medical
condition
Used
year
2008
time
1195
helicopter location
Brazil
serial number
14720
registration number
PP-AMI
listing ID
HT23025
Description
HIGHLIGHTS
- Low Time
- 3-Axis Auto Pilot
- Air Conditioning
- Auxiliary Fuel Tank and Inlet Barrier Filter
avionics
- ELT C406-2HM Artex
- ICS NAT Dual Pilot AA95 Controllers + one AA95 Controller for EMS Cabin
- Enconder Altimeter 3A67-32-20F-05-1KR
- RockAir Portable Skytrac kit
- Marker Beacon KR21
- System Intecom system AG-06-1U, pilot/copilot
- Radalt/DME provisions

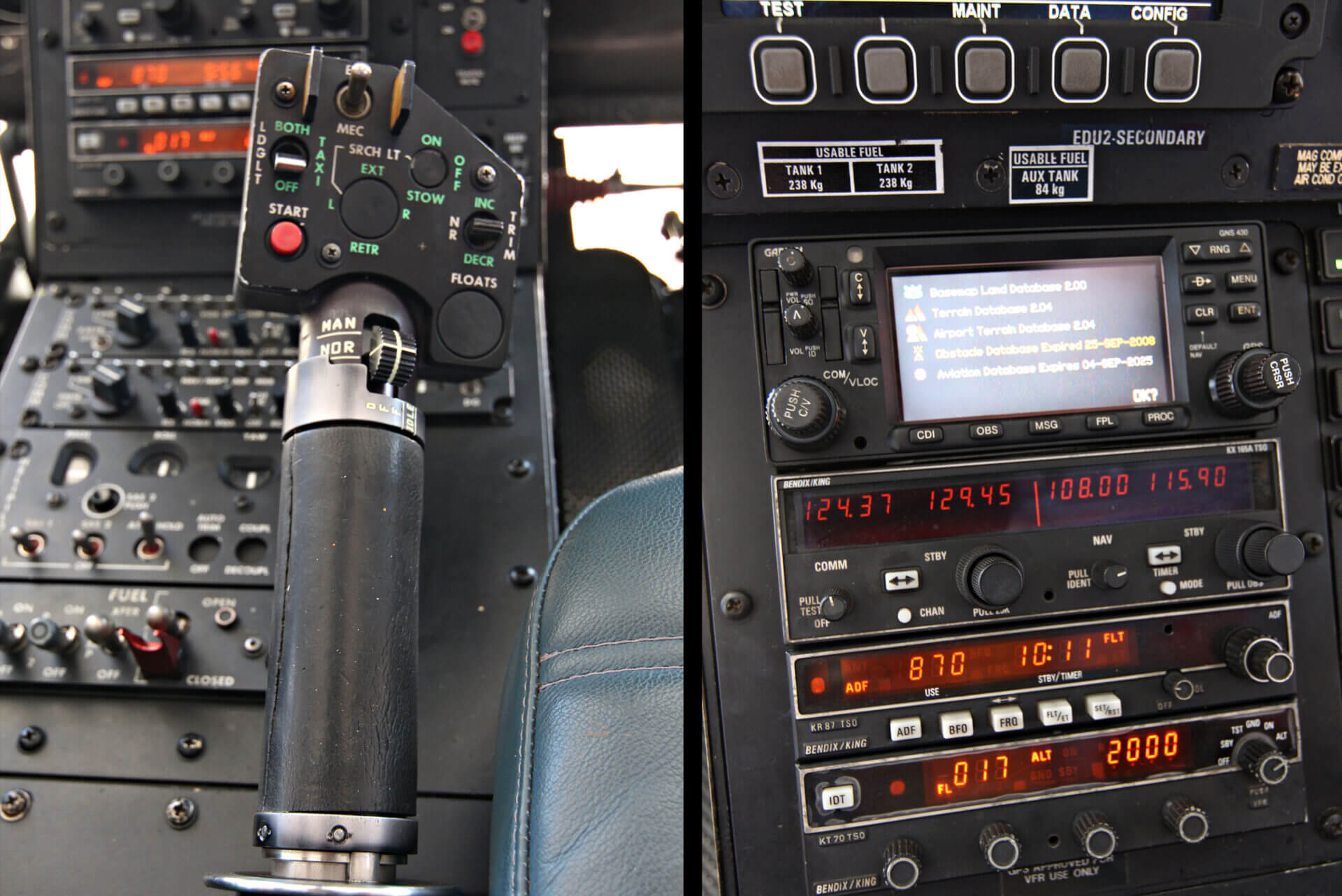

- Garmin GNS430
- Bendix/King KT-70 Transponder (mode S)

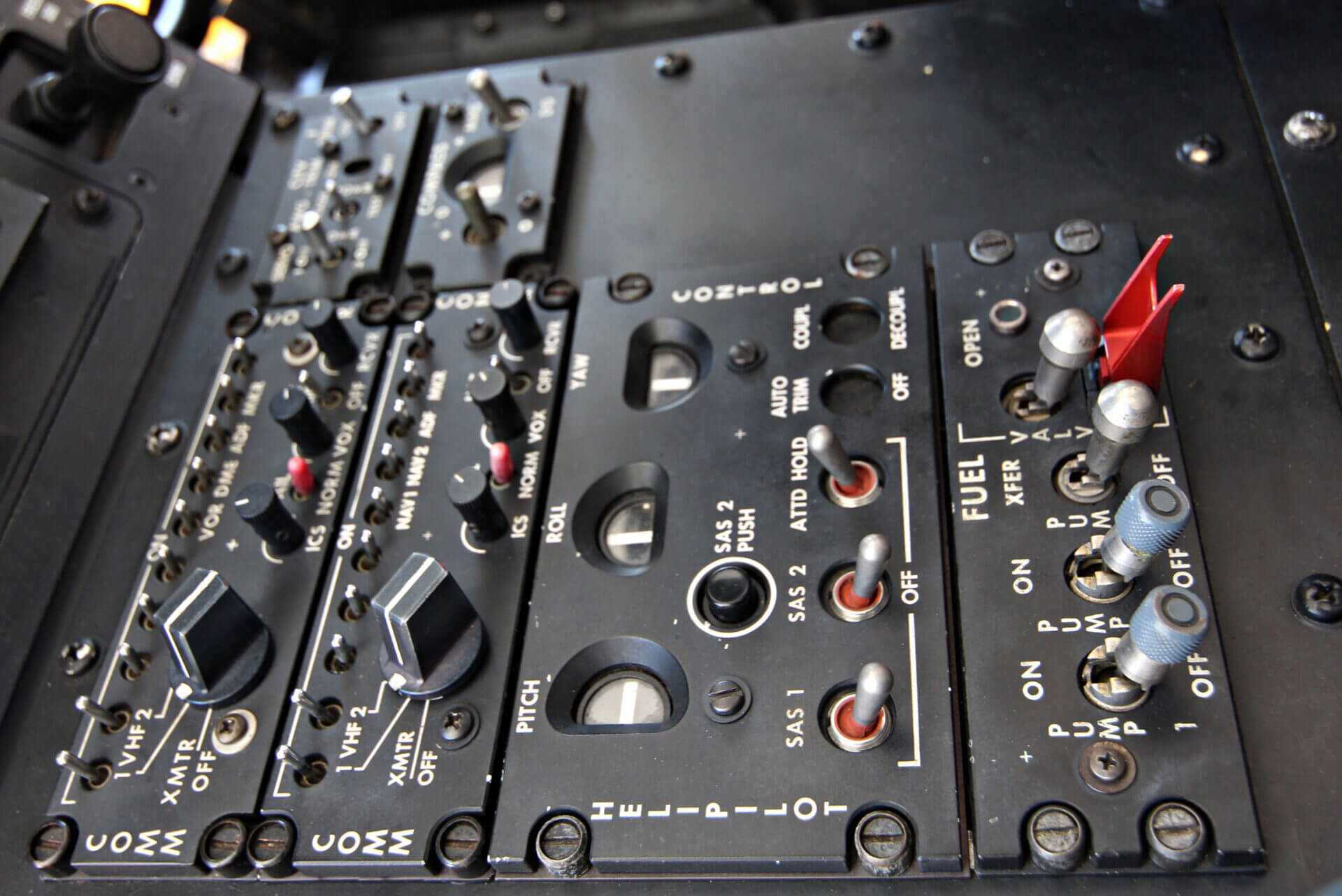

- AFCS 3-axis duplex SP-711 Honeywell
- ADF KR-87 Bendix/King
- Gyrocompass C14A Honeywell
- JCS pilot AG-06-lU Agusta/Gemelli

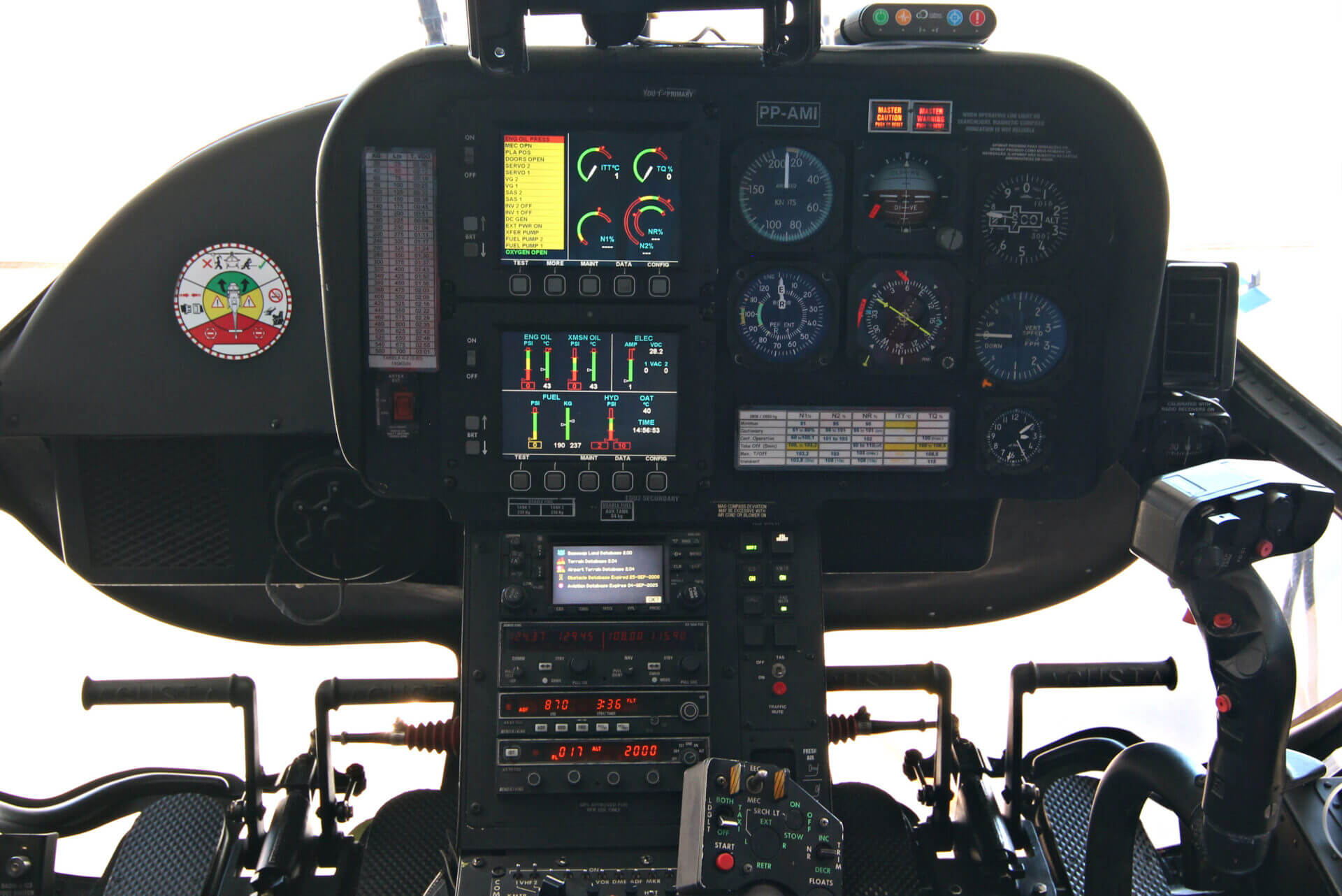

- Pilot navigation instruments (including ADI & HSI)
- VHF-COM/GPS 250XL Garmin
equipment
- Shoreline power 1000 W inverter with aux power in cabin
- Mounts
- Defibrillator
- Infusion Pump
- Ventilator
- Central Warning System
- Position lights
- 250 W landing lights (2) Anti collision lights (2) Cockpit utility lights (2) Instrument lights with dimming switch
- Air Conditioner Vapor Cycle System
- 3-cell fuel system (605 1- 160 USG)
- Reinforced skid type landing gear
- Two hinged jettisonable crew doors (LH & RH)
- Two sliding passenger doors (LH and RH), 1.10 m opening, with jettisonable windows Acrylic windshield and side windows
- Acrylic overhead windows
- Reinforced Windshield (pilot and co-pilot)
- Baggage Compartment Extension (1.9m)
- AC power supply system (2 inverters)
- Pulsed chip detectors
- Engine inlet barrier filter
- Cargo Hook Provisions
- Dart Step
- Auxiliary Fuel Tank
- First Aid Kit
- Fire Extinguisher
- Rotor Brake system
- Passive vibration system provisions
interior
INTERIOR - OPTION FOR EMS CONFIGURATION:
3-4 passenger and 2 crew with Stretcher or Option for Utility Configuration: 6 passenger, 2 crew (Utility Configuration is ANAC / Brazilian approved only)
1 - EMS INTERIOR
Single Stretcher - Fixed Parts
- Head liner with soundproofing and EMS provisions
- Side liners LH and RH with EMS provisions
- Aft EMS liners with rails
- Bench panels with rear EMS provisions
- Stretcher platform provision
- Cargo net provisions
- Floor equipped with rails and EMS provisions
- EMS electrical system and outlets (12 V DC / 28 V DC)
- 3rd ICS station in passenger cabin
- Medical oxygen system provision (single bottle)
- Sliders on passenger cabin doors windows
- Co-pilot reversible seat (in lieu of standard seat)

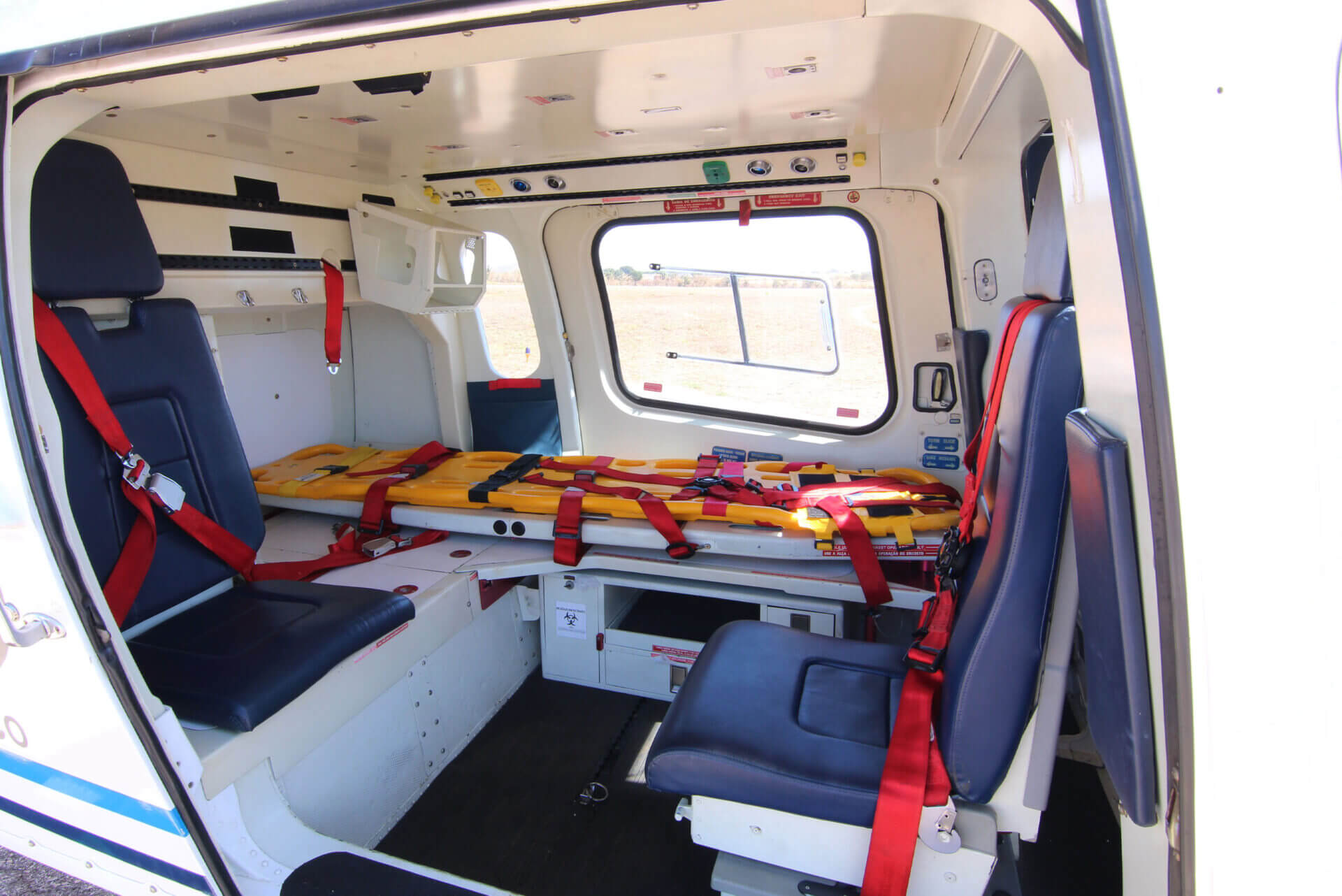

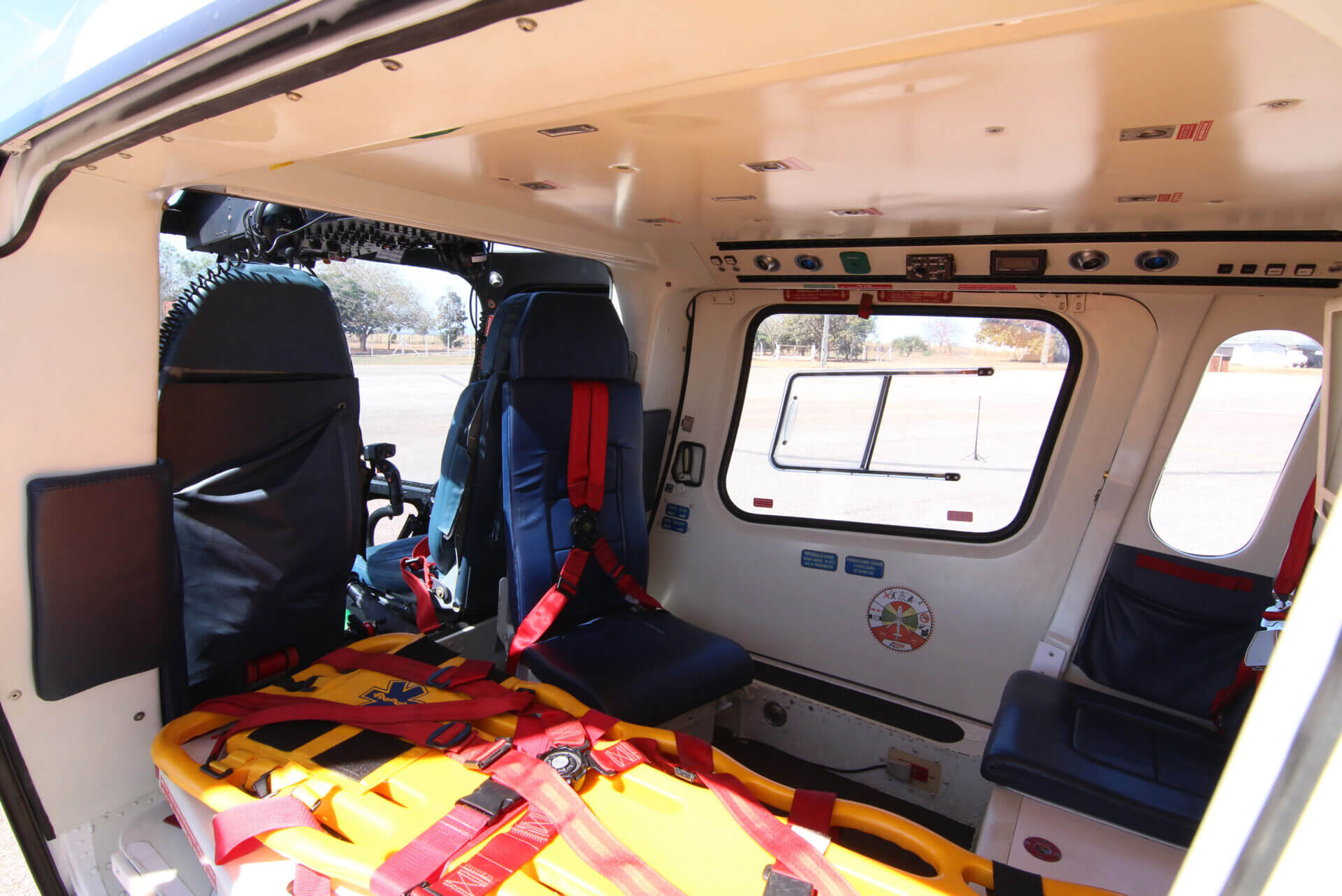

2 - EMS INTERIOR
Single Stretcher Installation - Removable Parts
- Storage compartment
- Primary stretcher platform with front lock mechanism
- Primary stretcher (Qty 1)
- Interior cargo net
- Seats and stretcher covered with leatherette
- Aft facing sliding/rotating seat
- Foldable fwd facing seats with headrests (Qty 2)
- 3-point shoulder harness with inertial reels and safety-belts for passenger seats
- Bleed Air Heater
- Primer Finished Cabin Walls
- Two Individual Pilot Seats, fore and aft adjustable, with lab belts and headrests
- Aluminum Alloy Honeycomb reinforced floor with anti-skid finishing
- Ventilation Ram Air Inlets
- Anti-reflection instrument panel
