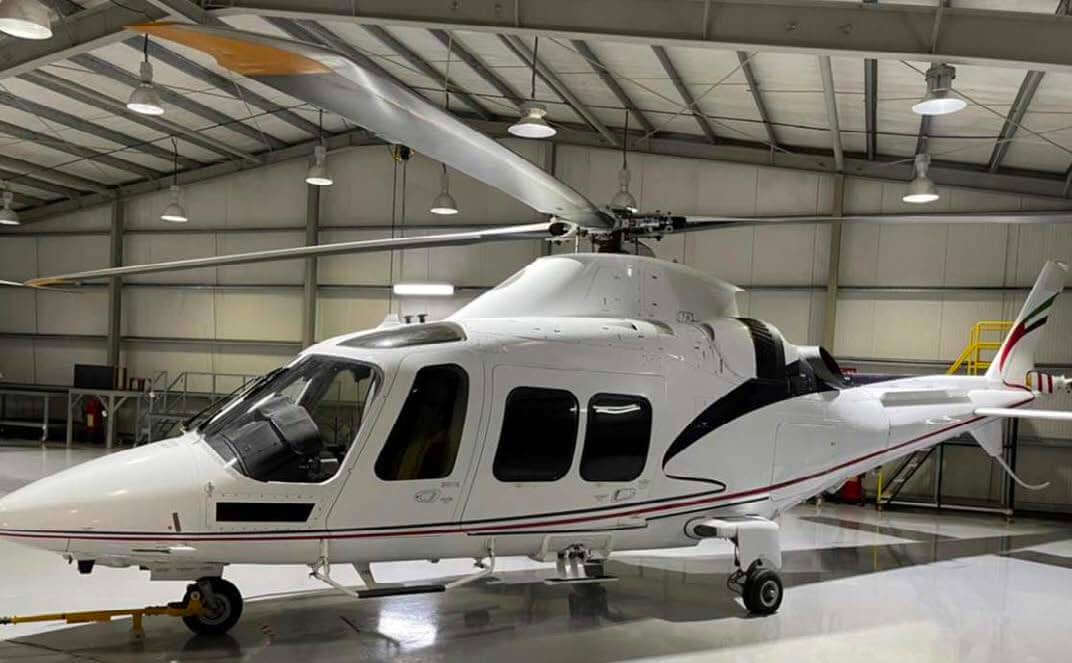

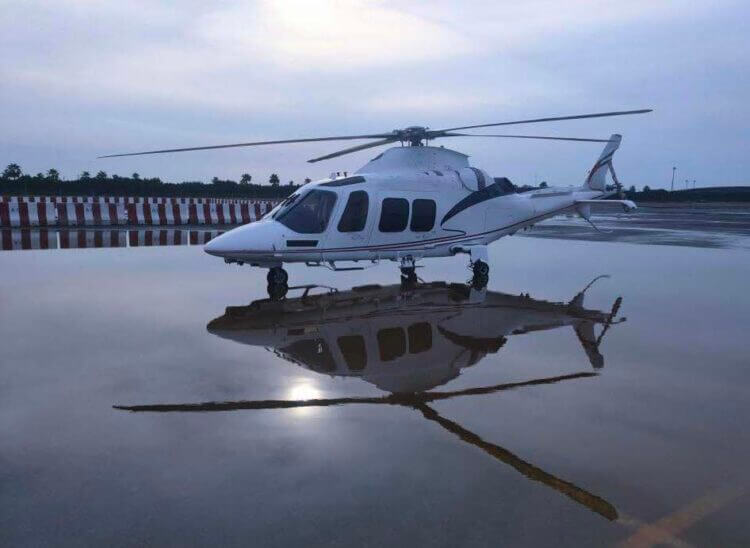

Leonardo AW109SP

3,650,000

Share Listing:

View Listing PDF

manufacturer

Leonardo

configuration

VIP

condition

Used

year

2012

time

3176

helicopter location

N/A

listing ID

HT20699

Description

This helicopter is outfitted with in-flight entertainment system (IES), external video camera system (EVS-1500) and fresh 3200 hour inspection.

avionics

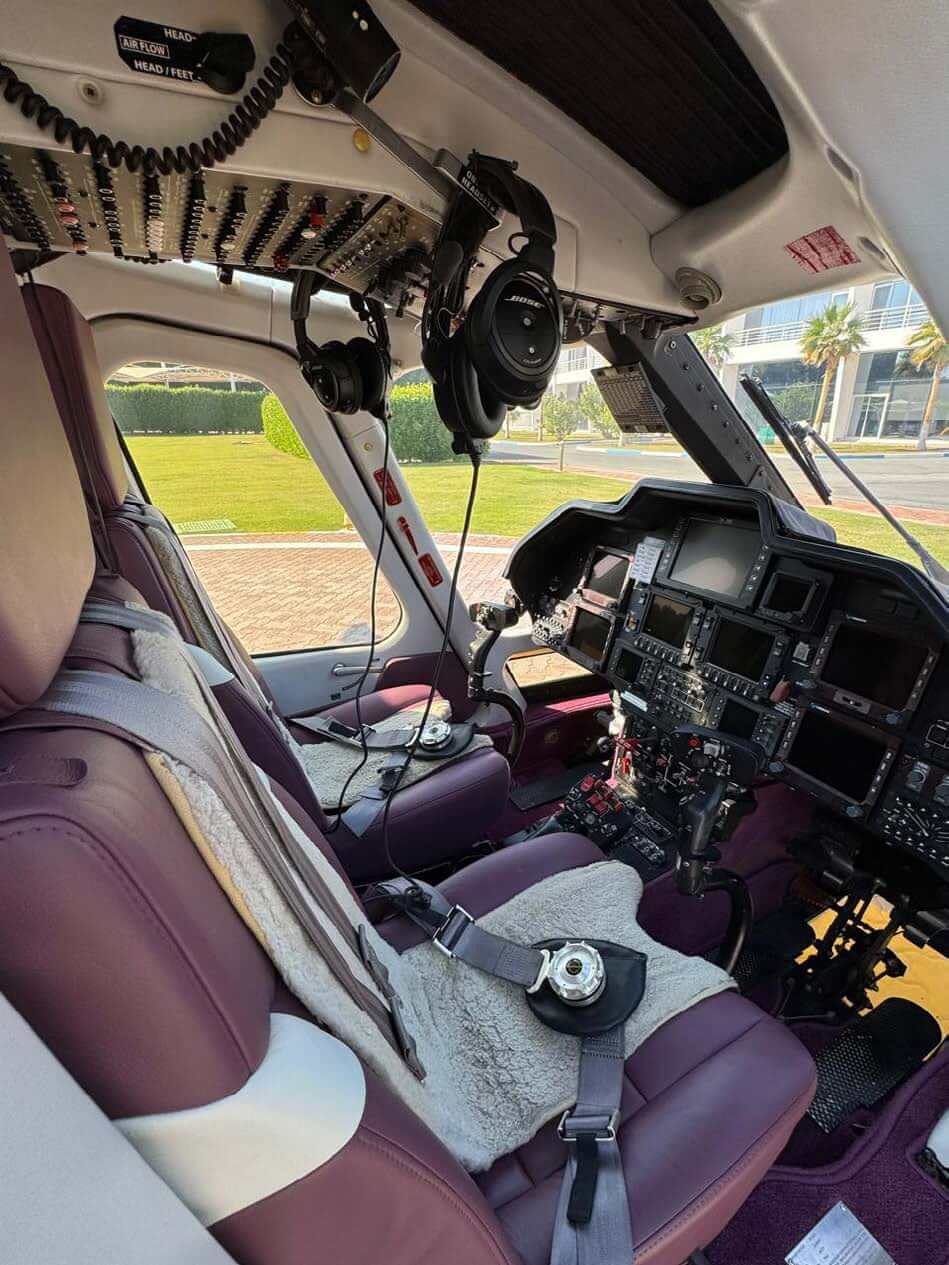

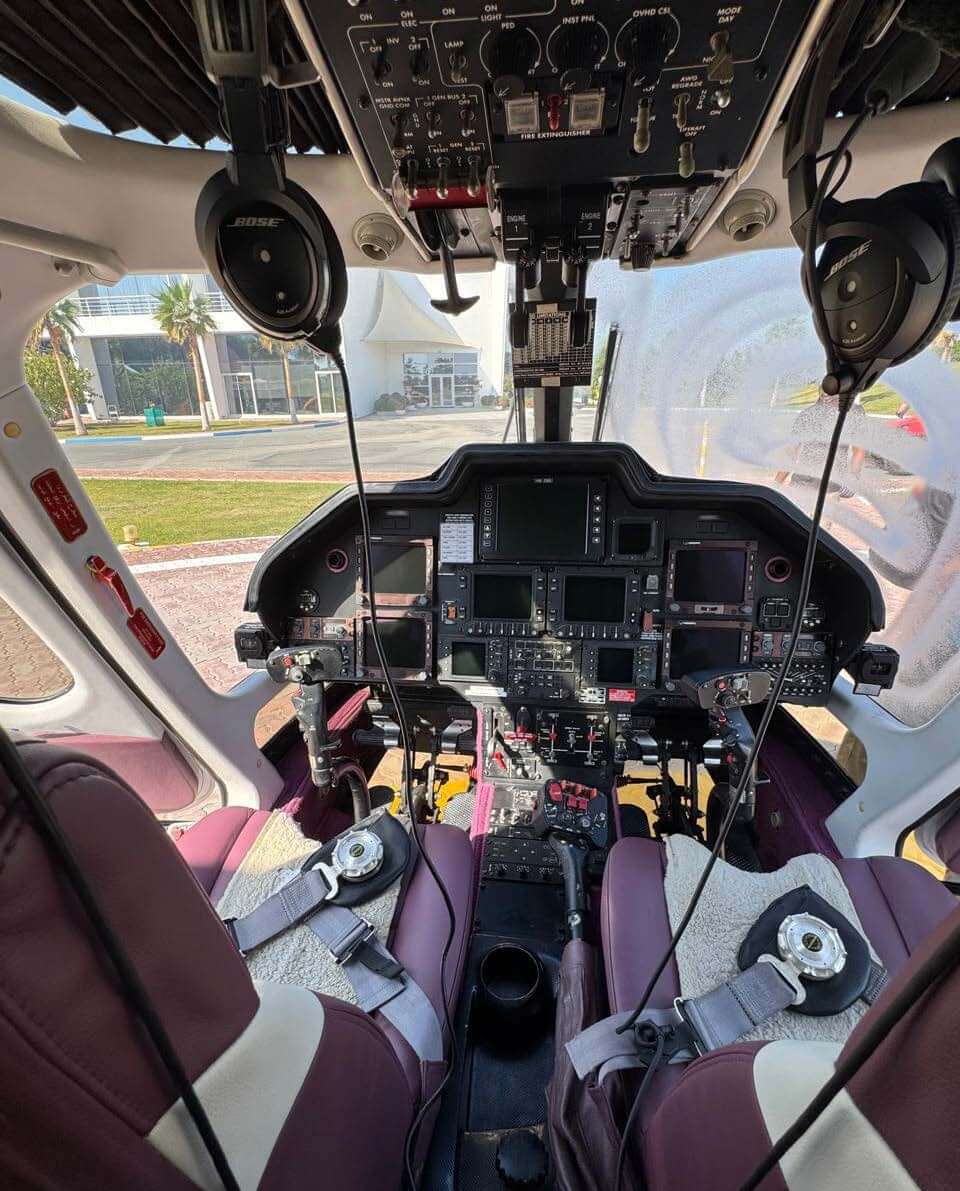

NAVIGATION SYSTEM WITH EFIS (PILOT AND CO-PILOT)
- VHF/COM/NAV/GPS
- AUTOMATIC FLIGHT CONTROL SYSTEM (3 AXIS DUPLEX)
- MULTIFUNCTION DISPLAY
- TRANSPONDER TDR-94D MODE S
- EMERGENCY LOCATOR TRANSMITTER (ELT) SYSTEM
- WEATHER RADAR RDR2000
- COCKPIT CENTRAL MONITOR 8.4’’
- TAS, DIGITAL MAP GENERATOR

equipment

- ELECTRICAL STEP BAR RIGHT SIDE WITH SINGLE ACTUATOR
- SOUND PROOFING KIT
- PASSIVE VIBRATION ABSORBER
- INTERCOMMUNICATION SYSTEM (ICS), VIP VERSION
- ROTOR BRAKE SYSTEM
- AUXILIARY FUEL TANKS
- BAGGAGE COMPARTMENT EXTENSION
- EMERGENCY FLOATS PROVISION ONLY
- INSTALLATION OF THE 20 CELLS BATTERY KIT
- PILOT/CO-PILOT STEPS
- RIPPLE DAMPER, HYDRAULIC SYSTEM
- CABIN SUNBLINDS (NOT NVG COMPATIBLE)
- ENGINE INLET PARTICLE SEPARATOR SYSTEM
- CABIN FOLDABLE FOOTSTEP (LEFT/RIGHT SIDE)

interior

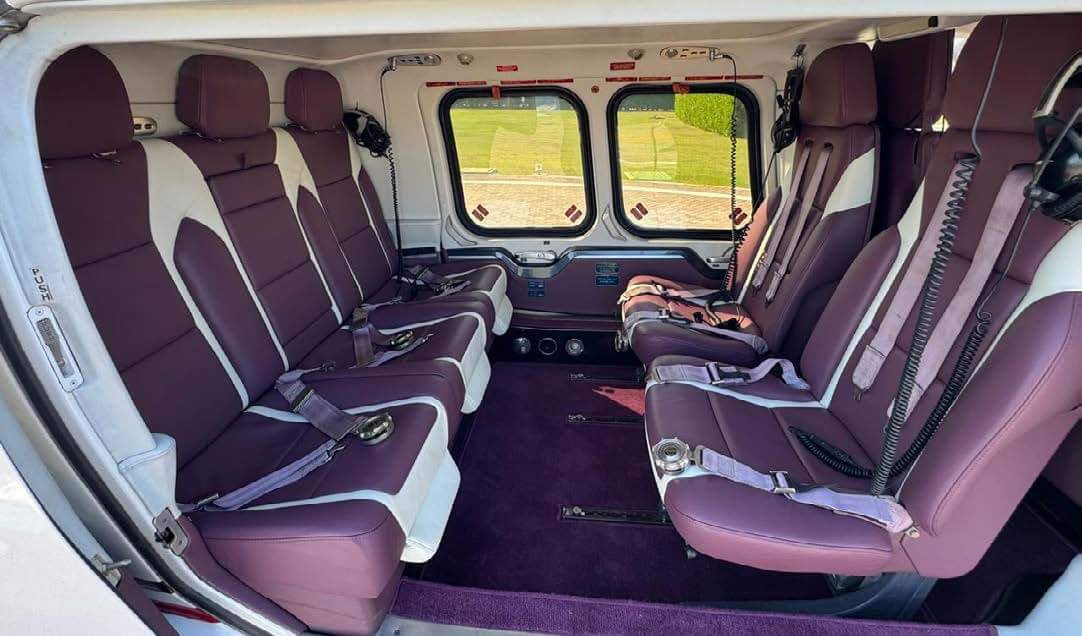

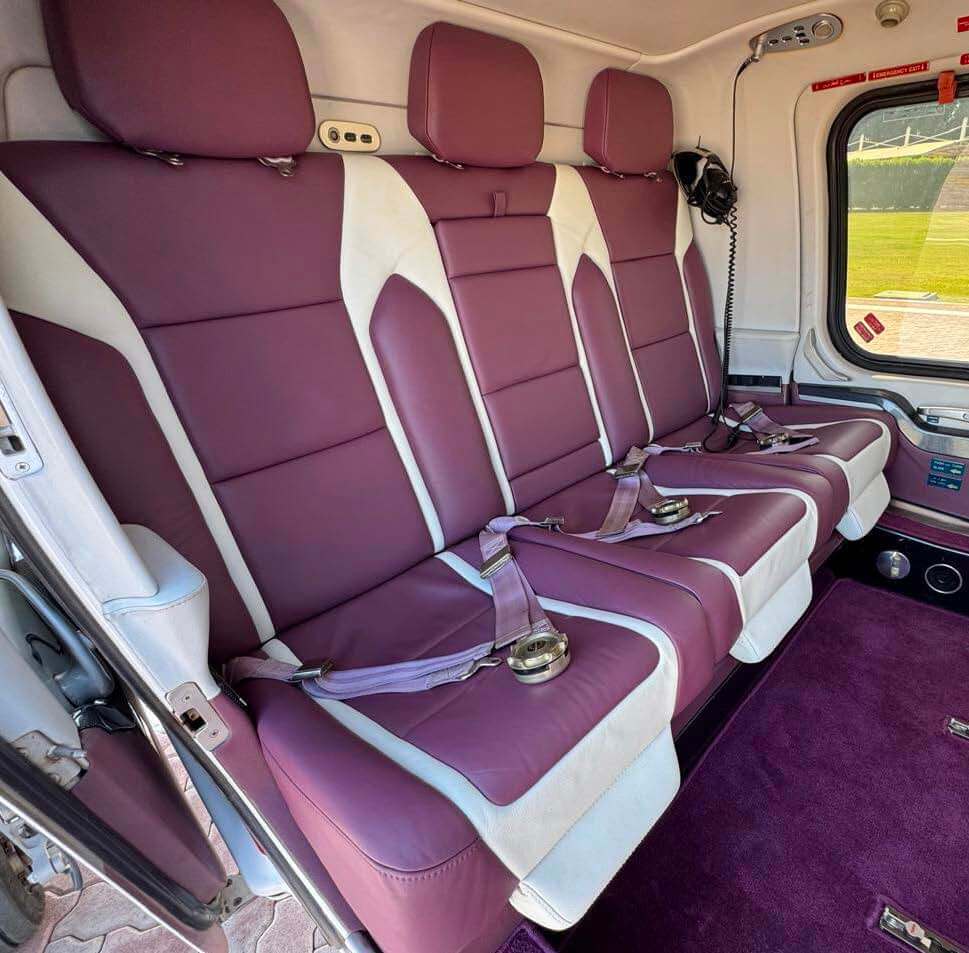

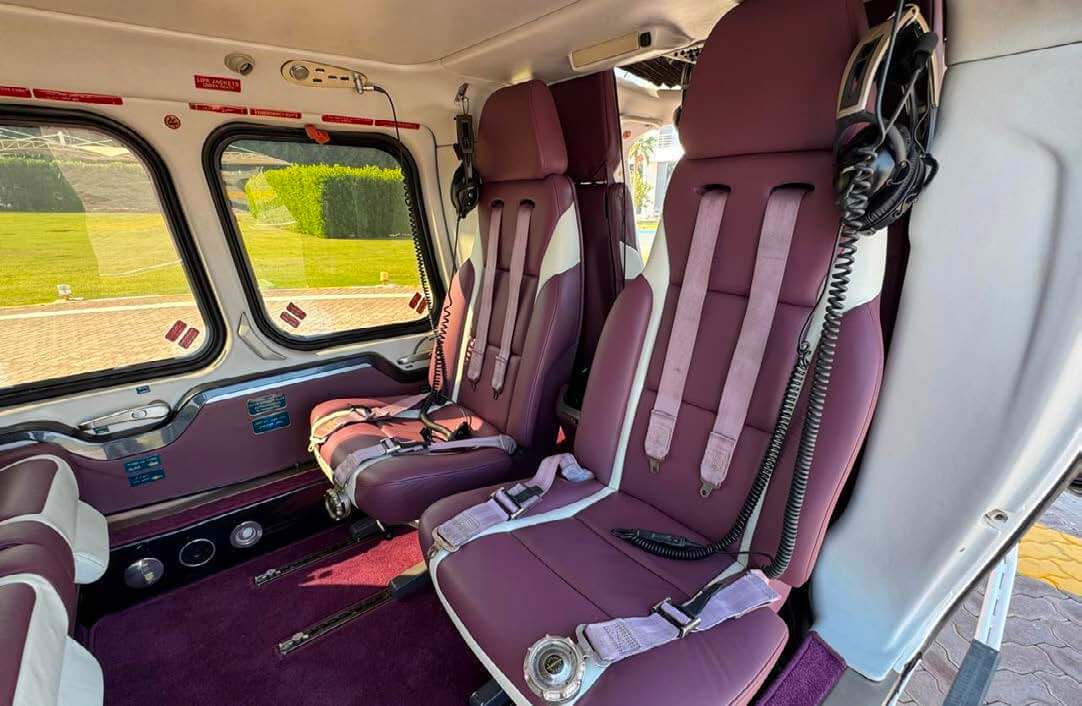

- VIP INTERIOR CONFIGURATION

general characteristics

- ENVIRONMENTAL CONTROL SYSTEM
- CATEGORY “A”
- IN-FLIGHT ENTERTAIMENT SYSTEM (IES)
- EXTERNAL VIDEO CAMERA SYSTEM (EVS-1500)
- FRESH 3200 HOUR INSPECTION

engine 1

PW207C
TIME SINCE NEW - 2,565 HOURS
CYCLES - 2033 IMP / 1693 N1 / 5349 N2

engine 2

PW207C
TIME SINCE NEW - 2,678 HOURS
CYCLES - 2955IMP/1913 N1/ 5259N2

inspection details

MAIN ROTOR BLADE 1 - 8,800 TBO/SLL / 6,006.58 HOURS REMAINING / 68.25% REMAINING
MAIN ROTOR BLADE 2 - 8,800 TBO/SLL / 5,668.50 HOURS REMAINING / 64.41% REMAINING
MAIN ROTOR BLADE 3 - 8,800 TBO/SLL / 6,253.16 HOURS REMAINING / 71.05% REMAINING
MAIN ROTOR BLADE 4 - 8,800 TBO/SLL / 5,623.50 HOURS REMAINING / 63.89% REMAINING
TAIL ROTOR BLADE X2 - 10,000 TBO/SLL / 8,485.25 HOURS REMAINING / 84.85% REMAINING
MAIN TRANSMISSION - 4,800 TBO/SLL / 1,343.09 HOURS REMAINING / 27.98% REMAINING
90-DEGREE GEARBOX - 3,000 TBO/SLL / 1,098.08 HOURS REMAINING / 36.60% REMAINING
MAIN SERVO 1 TBO - 1,800 TBO/SLL / 1,368.66 HOURS REMAINING / 76.03% REMAINING
MAIN SERVO 1 SLL - 8,000 TBO/SLL / 7,568.66 HOURS REMAINING / 94.60% REMAINING
MAIN SERVO 2 TBO - 1,800 TBO/SLL / 1,407.50 HOURS REMAINING / 78.19% REMAINING
MAIN SERVO 2 SLL - 8,000 TBO/SLL / 5,741.51 HOURS REMAINING / 71.76% REMAINING
MAIN SERVO 3 TBO - 1,800 TBO/SLL / 1,368.66 HOURS REMAINING / 76.03% REMAINING
MAIN SERVO 3 SLL - 8,000 TBO/SLL / 6,030.58 HOURS REMAINING / 75.75% REMAINING
TAIL SERVO TBO - 1,800 TBO/SLL / 1,368.66 HOURS REMAINING / 76.03% REMAINING
TAIL SERVO SLL - 11,000 TBO/SLL / 9,005.07 HOURS REMAINING / 81.86% REMAINING
STARTER GENERATOR 1 - 1,000 TBO/SLL / 568.66 HOURS REMAINING / 56.86% REMAINING
STARTER GENERATOR 2 - 1,000 TBO/SLL / 944.33 HOURS REMAINING / 94.43% REMAINING
ENGINE 1 - 3,500 TBO/SLL / 874.91 HOURS REMAINING / 24.99% REMAINING
ENGINE 2 - 3,500 TBO/SLL / 821.08 HOURS REMAINING / 23.45% REMAINING
