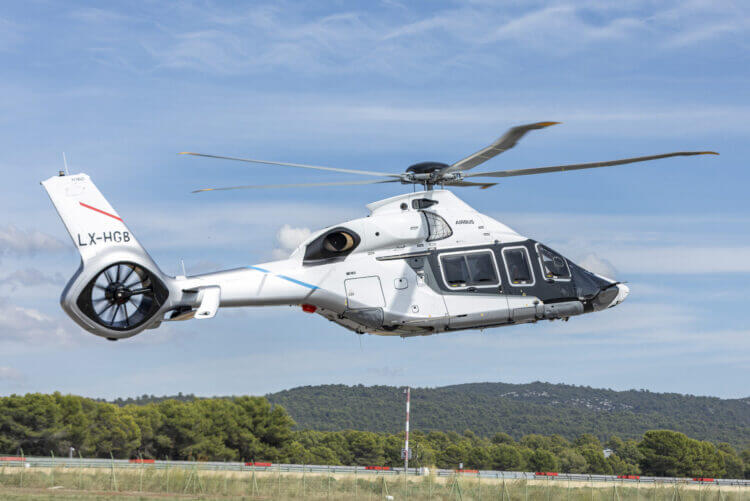

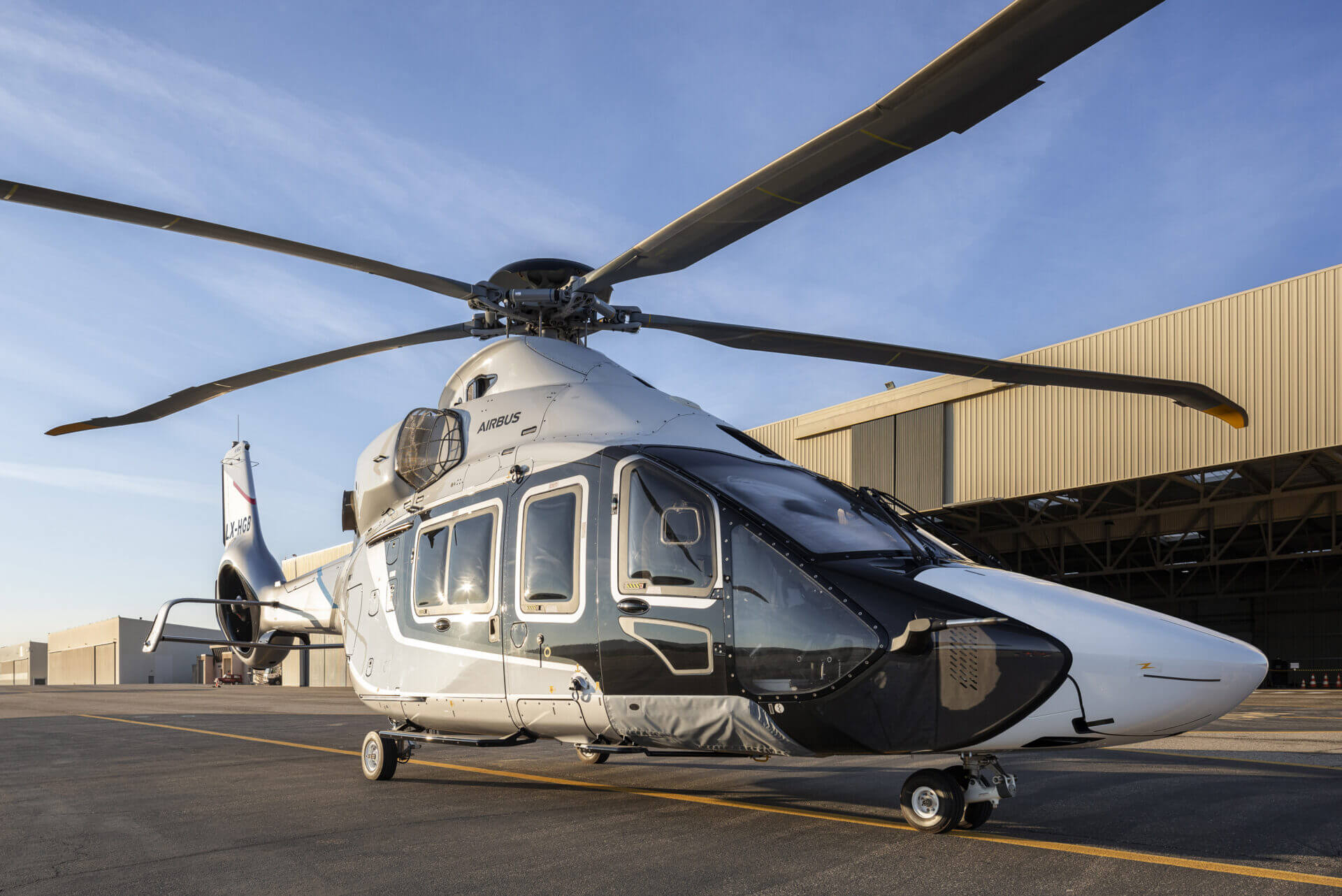

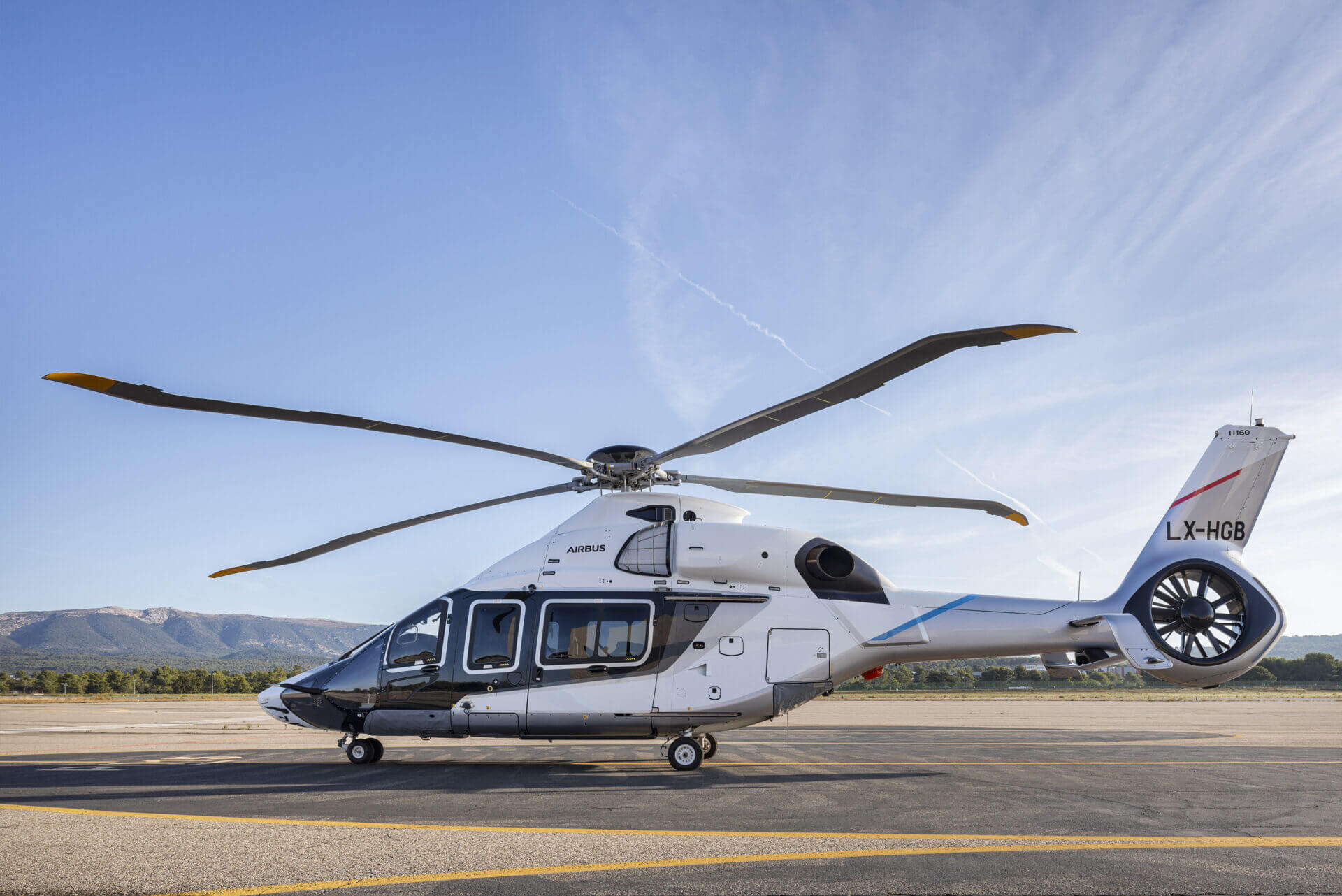

Airbus H160

STANDARD AVIONICS PACKAGE BASED ON HELIONIX SUITE
Cockpit video camera with embedded recorder
Tail fin video camera
CVFDR – Solid State Cockpit and Flight Recorder
Flight Data Continuous Recorder (FDCR) for HFDM (Helicopter Flight Data Monitoring) (HELIONIX SUITE)
2 duplex Aircraft Management Computer (AMC) (HELIONIX SUITE)
Usage Monitoring System (HELIONIX SUITE)
Light HMS – Health Monitoring System
Emergency Locator Transmitter (ELT) with embedded GPS
Radio altimeter AVH1600
Dual Flight Management System installation with LPV approach function, search patterns and auto hover mode
Digital Audio Communication System (DCAS) basic pack for pilot and copilot, two headset holders in cockpit
Passenger address NAT 251
VHF/AM Collins VHF 4000 n 1
VHF/AM Collins VHF 4000 n 2
VOR/ILS/MKR Collins NAV4500 n 1
VOR/ILS/MKR Collins NAV4500 n 2
VHF/FM NAT NPX 138 – Fixed Parts
Collins DME 4000
Multifunction transponder ADSB-Out/TCAS II coupled with AFCS
Weather/Search Radar Telephonic RDR1600
Digital MAP (HELIONIX SUITE)
Helicopter Terrain Awareness Warning System (HELIONIX SUITE)
Synthetic Vision System (HELIONIX SUITE)

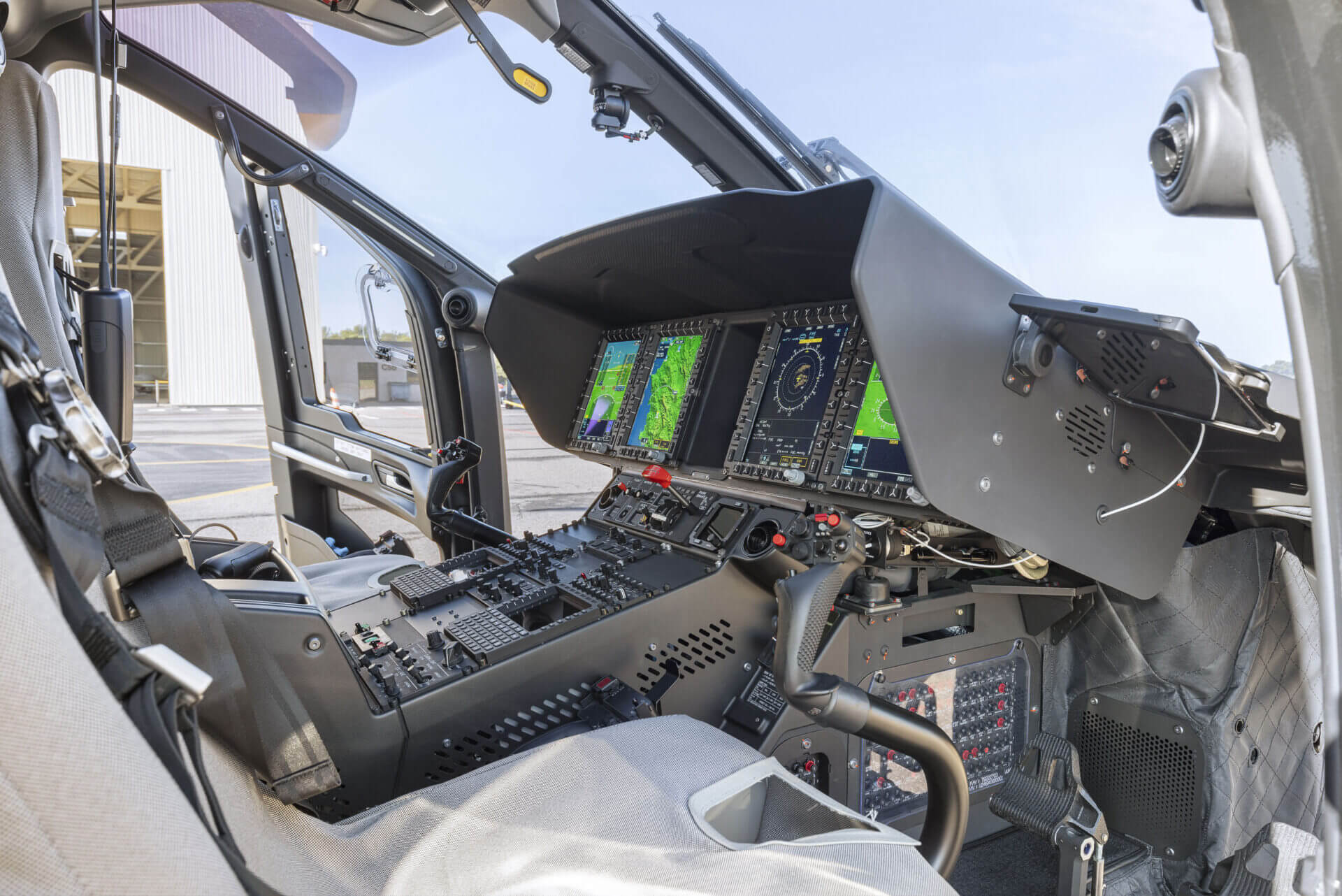

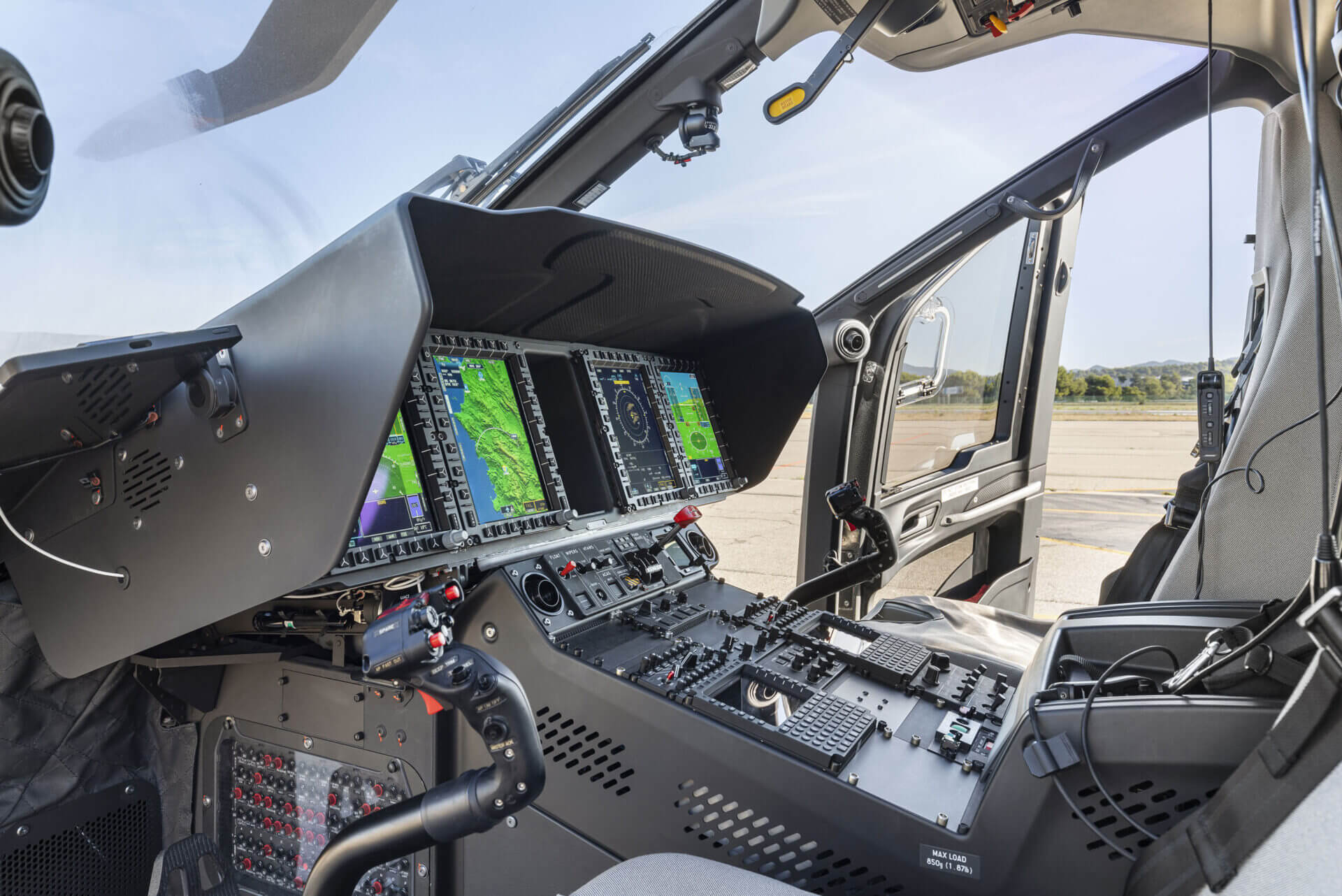

INSTRUMENT PANEL

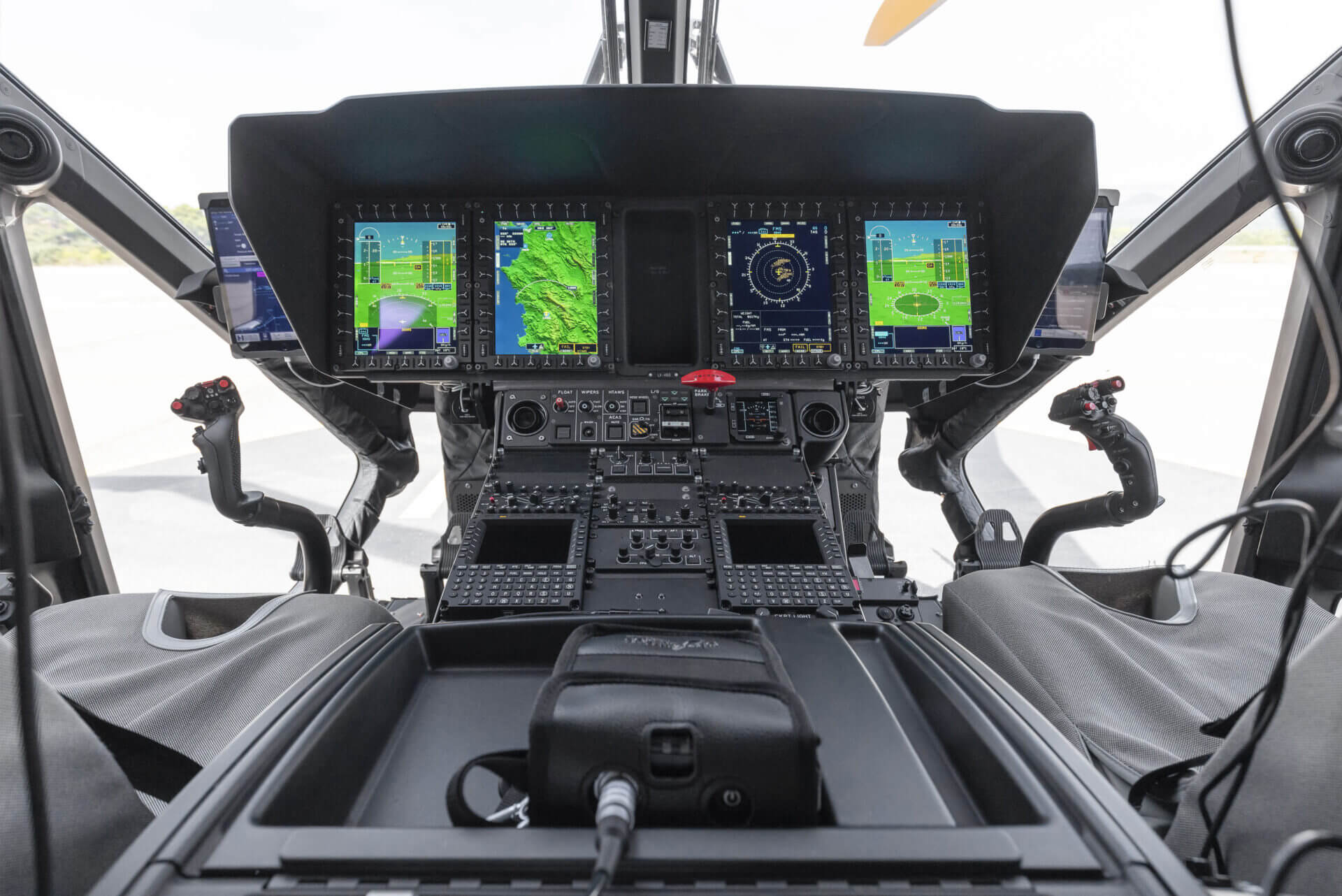

4 reconfigurable smart 6x6-inch displays providing following functions:
- Flight Navigation Display page including:
Primary Flight Display (PFD)
Navigation Display (ND)
Parameter tuning
Automatic Flight Control System (AFCS)
Fuel data
First Limit Indicator (FLI)
Rotor speed and free turbine rotation speed
Crew selectable area (clock, etc.)
Alarms and advisories
- Vehicle Monitoring Display (VMD) pages including:
Main page: engine & vehicle status
Fuel page
Electrical system page
Hydraulic / landing gear page
Transmission page
Enhanced usage monitoring page
- External video sources (when optional equipment is fitted)
1 common control panel:
- Landing gear maneuver and position indicators
- Windshield wiper and washer controls
- Parking brake and nose wheel control panel
- Capabilities for optional controls Stand-by Instruments
- Stand-by compass
- Integrated Electronic Stand-by Instrument (IESI)
1 storage box

INTERSEAT CONSOLE
1 Automatic Pilot Control Panel (APCP)
1 Environment Control System (ECS) – separate cockpit / cabin ventilation & heating and air conditioning, cockpit demisting
1 lighting control panel
1 ELT remote control panel
1 radar control panel
2 Advanced Flight Management and Control Display Units
2 DACS Audio Control Panels

OVERHEAD PANEL
Electrical function and emergency cut-off controls
Fire detection / extinguishing controls
Engine controls
Engine auxiliary controls (training and chip burning)
Hydraulics control
Pre-flight test and lamp test control
Rotor brake control grip
Capabilities for optional controls

MISCELLANEOUS
3 Attitude and Heading Reference Systems (AHRS)
2 three-axis Magnetic Sensor Units (MSU) connected to AHRS
3 heated pitot heads
2 Air Data Units (ADU)
2 Temperature Probe Units (TPU)
Wireless data device with SD card

COCKPIT / CABIN
2 removable pilot and co-pilot crashworthy high back-rest black covered seats, adjustable in height, forward and aft; each fitted with 5 points harness
1 windshield including sunshade in the upper area
2 lateral windows
2 nose windows
2 lockable hinged pilot and co-pilot doors providing each one:
- Jettisonable window for emergency egress
- 1 bad weather window
- 1 lower window
2 external cockpit footsteps
1 first aid kit
2 tablet holders in cockpit
Dual flight controls
Windshield washer
2 windshield wipers
2 headset hooks on overhead panel
2 handles in cockpit (one on each side on upper frame of the canopy)
Storage box in center console, on instrument panel and removal storage box on floor (pilot side)
4 jettisonable windows located in cabin
2 portable fire extinguishers, one in cockpit and one in cabin
Handles in cabin (2 on each side of each cabin door)
Dual zone air conditioning system with control in cockpit
Standard key
Capability to access the cargo compartment through cabin
Emergency floatation gear with automatic percussion – Fixed Parts/Removable Parts
External life raft installation with PLB compart – Fixed Parts
Helicopter Emergency Egress Lighting (HEEL)
ADELT HR SMITH series 503 with GPS connection – Fixed Parts/Removable Parts

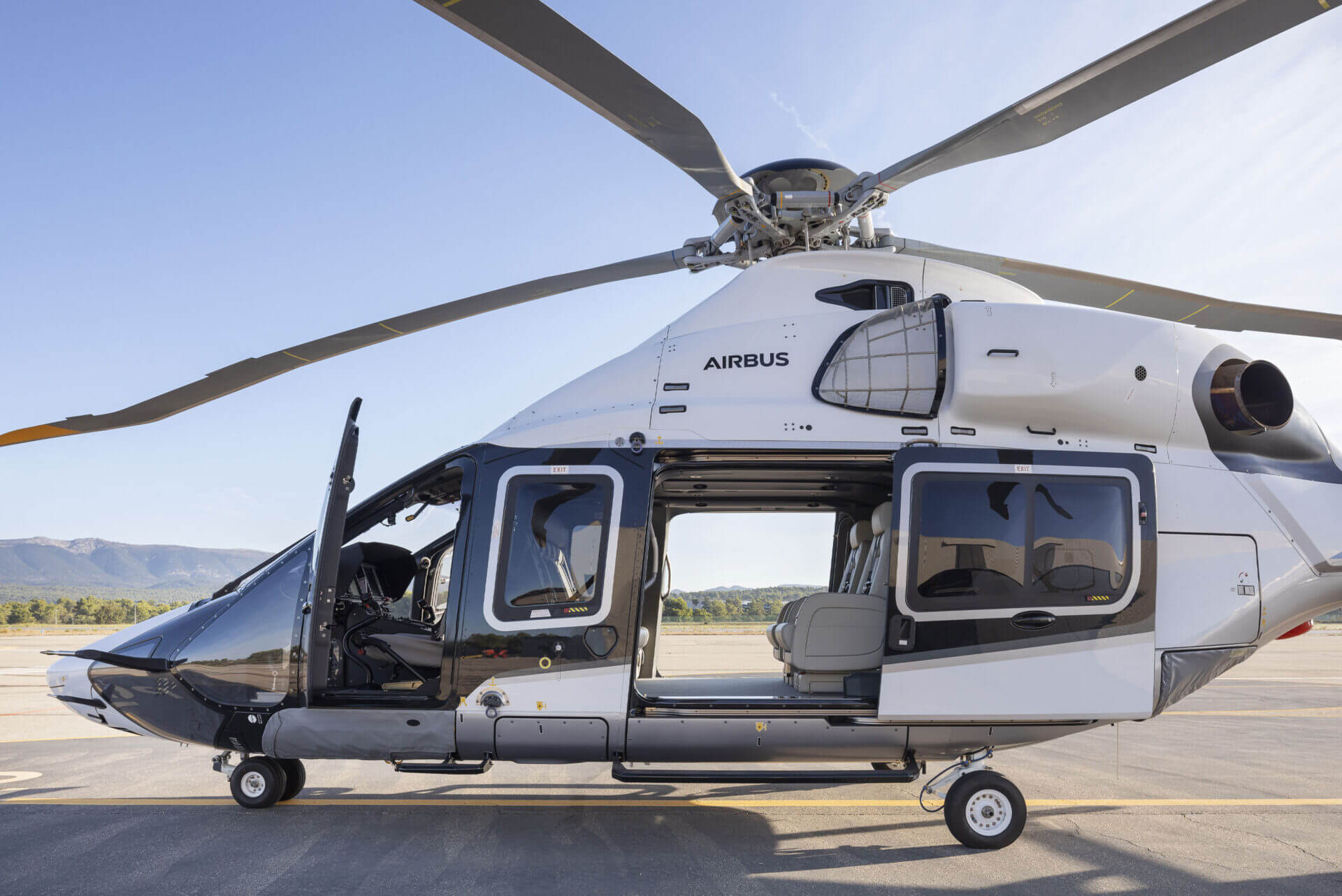

2 enlarged cabin sliding doors

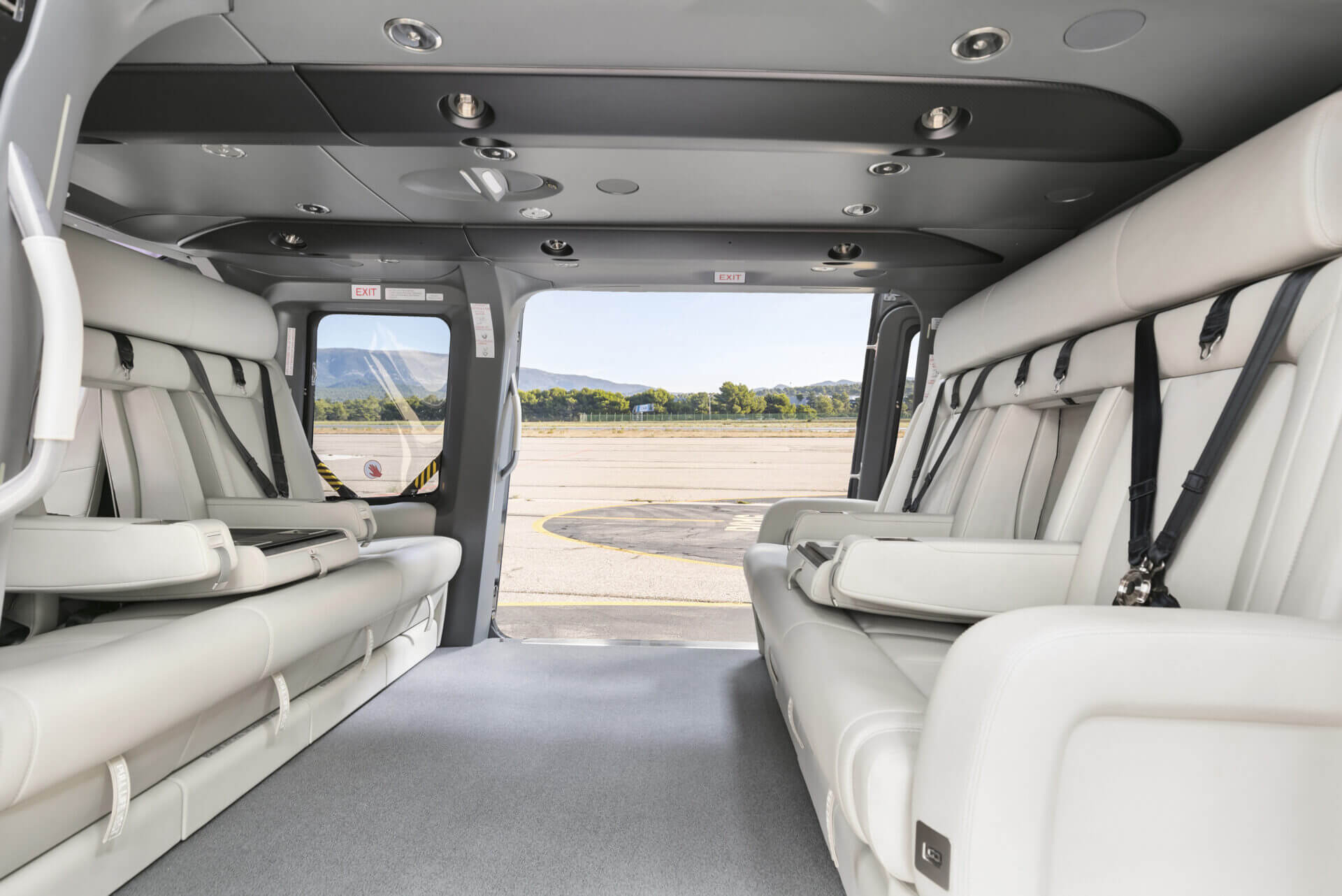

6-passenger ACH Line Lounge installation package (4+2) with one rear cabinet

GENERAL
Crashworthy airframe comprising
- Front fuselage (cockpit & nose avionics bay)
- Intermediate fuselage including:
Cabin
Luggage compartment with 2 lockable doors (LH & RH sides)
Rear fuselage tail boom with Canted Fenestron & horizontal stabilizer
Cowlings and fairings
Built-in footsteps & handles to access upper deck for maintenance
Tricycle-type & electrically controlled retractable landing gear
Jacking, hoisting & mooring points

ROTORS & FLIGHT CONTROLS
1 main rotor with:
- 5 Blue Edge concept blades
- 1 SPHERIFLEX motor head
- 1 rotor mast fitted with rotor Top and Nr sensors
- 5 interblade elastomeric dampers
- Upper coning stop
1 Fenestron type tail rotor with 10 composite material blades built into vertical fin
1 Flight Control System (FCS) fitted with 3 dual-chamber /dual body main servo-units (on cyclic and collective pitch channels) and 1 dual-chamber / dual body rear servo-unit (on tail rotor pitch control channel)
1 “fail passive” Dual Duplex Digital Automatic Flight Control System (4-axis type) including upper and safety modes (in particular Auto Hover and recovery modes)

TRANSMISSION SYSTEM
1 main gearbox with low oil level switch, oil pressure and temperature sensors, access to ports for endoscope and oil sampling, 4 chip detectors and oil cooling system
2 free wheels integrated to the main gearbox
1 dual lubrication system with 1 main pump and 1 emergency pump
2 engine / main gearbox coupling devices (shaft and torque tube)
1 rotor brake system
1 tail rotor drive shaft
1 splash lubricated tail gearbox with 1 temperature sensor and 1 chip detector

HYDRAULIC GENERATION
2 independent hydraulic systems feeding main rotor and tail rotor actuators including level probes and sight gauges in oil tanks
1 electro-hydraulic pump (on LH side) for ground assistance
Self-sealing hydraulic ports on each side for ground hydraulic power bench connection

ELECTRICAL INSTALLATION
1 DC power generation system:
- 2 starters / generators (300 A, 28 VDC)
- 2 electrical master boxes
- 2 nickel-cadmium batteries 15 Ah including thermal switch and temperature probe
- 1 DC emergency electrical generator
- 1 external receptacle with 28 VDC power connector and 1maintenance external ICS jack
- 1 breaker panel in nose
- 2 breaker panels in cockpit
- 1 emergency breaker panel in cockpit
Power distribution system:
- 2 primary bus bars
- 2 essential bus bars
4 high load contactors (150 A)
2 USB (5V/2A) power supply plug on instrument panel
Cabin power supplies at rear console
Lighting system:
- 1 red/white tail fin anti-collision / strobe light
- 3 position lights (red, green, white)
- 2 exterior emergency lights
- Instrument panel, interseat console and overhead panel adjustable lightings
- 2 flashlights
- 1 dome light and 2 reading lights in cockpit
- Cabin lights (including emergency lighting)
- 1 luggage retractable and swiveling front central landing light (must be replaced by optional equipment to be compliant with NVIS system)
Radio on ground based on batteries (autonomous electrical power supply on ground)

SAFRAN ARRANO 1A
Engine No. 1
55 TSN

SAFRAN ARRANO 1A
Engine No. 2
55 TSN
