manufacturer
Airbus
configuration
VIP
condition
Used
year
2019
time
672
helicopter location
New Zealand
serial number
8624
registration number
ZK-HYZ
listing ID
HT22318
Description
ONLY 672 hrs total time – Fresh 6 yr Insp!!
▪First Registered in 2019 - EASA
▪Stunning VVIP Bespoke Leather Interior with Airbus Helicopters customisation
▪G500H TXi Avionic Suite with Garmin Wireless Connection Flight Stream 210
▪ Dual Hydraulics, Cobham Digital 2 Axis Autopilot with SAS & Crash Resistant Fuel System, Air-
Con, Float provisions and much more….. (Skid Pod not included)
avionics
BASELINE AIRCRAFT:
➢ Integrated Flight Display
➢Vehicle and Engine Management Display (VEMD)
➢NR indicator
➢Caution and Warning Panel
➢External side slip indicator
➢Stop watch
➢Cockpit camera
➢Standby instrument (IESI, magnetic compass)
➢Crash resistant fuel system

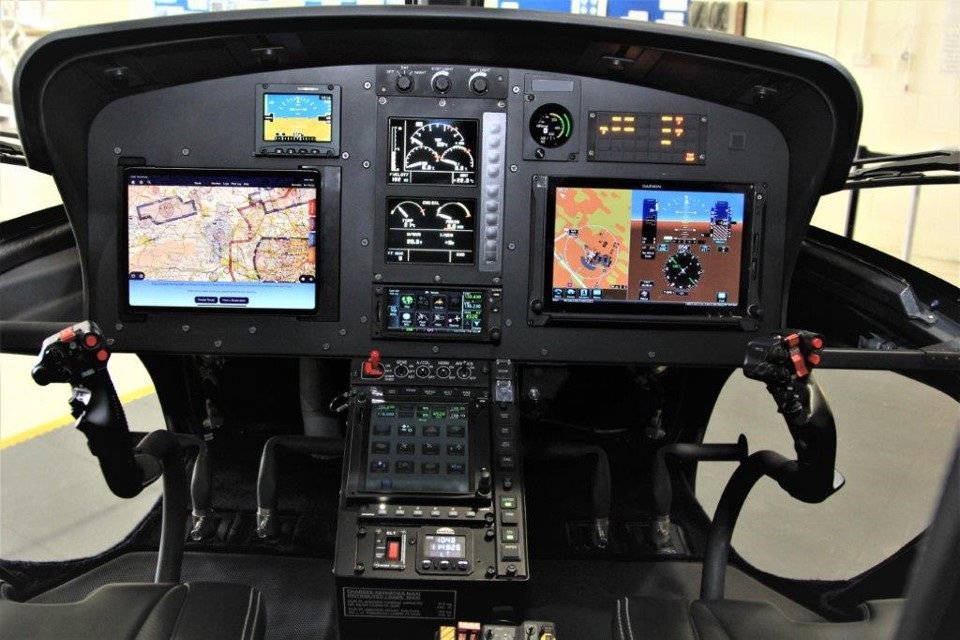

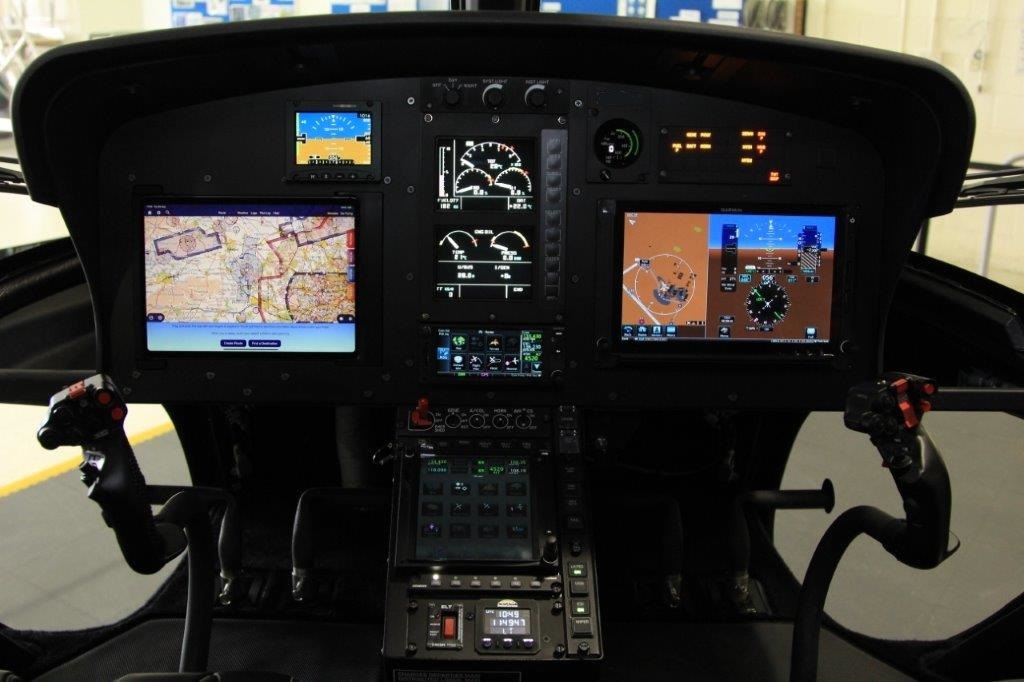

AVIONICS:
➢ VFR day and night package with integrated flight display Garmin
G500H TXi
➢ Cobham Digital 2 axis autopilot with SAS (Amazing features for
private pilots)
➢ Emergency Locator Transmitter - KANNAD INTEGRA AP-H
➢ VHF/VOR/LOC/GS Garmin GNC 255A
➢ Intercom System (ICS) - Garmin GMA 350H
2 Frequencies: 121.5 MHz (VHF), 406 MHz (COSPAS- SARSAT).
Includes the passenger interphone function. ICS compatible with High
level / High impedance headsets
➢ Transponder (MODE S) - Garmin GTX 335R - ADS-B OUT
➢ VHF/VOR/LOC/GS/GPS Garmin GTN 650H
➢ Avionic Display System Garmin G500H Txi
Including: Display – PFD RH Unit , Air data , Attitude & Heading
Reference System Unit (ADHARS) Magnetometer Unit & Outside Air
Temperature Probe
➢ ICS Installation Compatible with Bose Headset
Includes ICS stereo
➢ Radio Altimeter Thales AHV16, remote controlled
Displayed on glass-cockpit Garmin G500H
➢ VEMD Data Download Kit
Two software and connection cable. Allows compliance to EASA-OPS
Part-CAT
➢ Hourmeter
GTN750HXi INSTALLATION
➢ The GTN750HXi is a fully integrated GPS/NAV/COM solution and latest Garmin product evolution.
➢ Features the 6.9" touchscreen controls and large display.
➢ Allows access to high-resolution terrain mapping, graphical flight planning, geo-referenced charting, traffic display,
multiple weather options, connectivity, advanced navigation, which ease the interface Pilot/Aircraft.
➢ The modification includes the installation of the Multi-Bloc Centre Console and the Garmin GMA35c to replace the
GNC 255A and GMA 350H.
GARMIN WIRELESS CONNECTION FLIGHT STREAM 210
➢ The Flight Stream 210 is a Garmin feature which allows a wireless connectivity within the aircraft between your
iPad/PED device and the Garmin GTN650/GTN750 via Bluetooth.
➢ This option allows you to prepare your flight plan and waypoints in facilities and then upload it in your GTN suite.
equipment
Equipment
➢LH landing light (swiveling in elevation and azimuth)
➢Emergency floatation gear - Fixed Parts
➢ Increased Internal Max Gross Weight to 2370 kg
(5,225 lb) This option includes the option “Dual
hydraulic circuit”
➢Engine flushing device without removal of cowlings
➢Bulged window on right and left rear door
➢Pilot and Co-pilot windshield wiper
➢Dual Controls
➢First Aid kit
interior
Bluetooth Aviation Noise Reduction Headsets BOSE
A20 (x5)

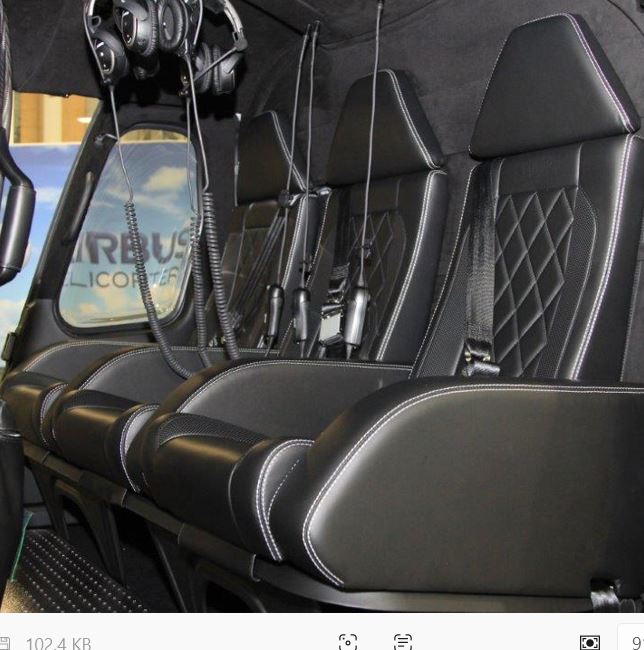

➢VVIP Interior Layout.

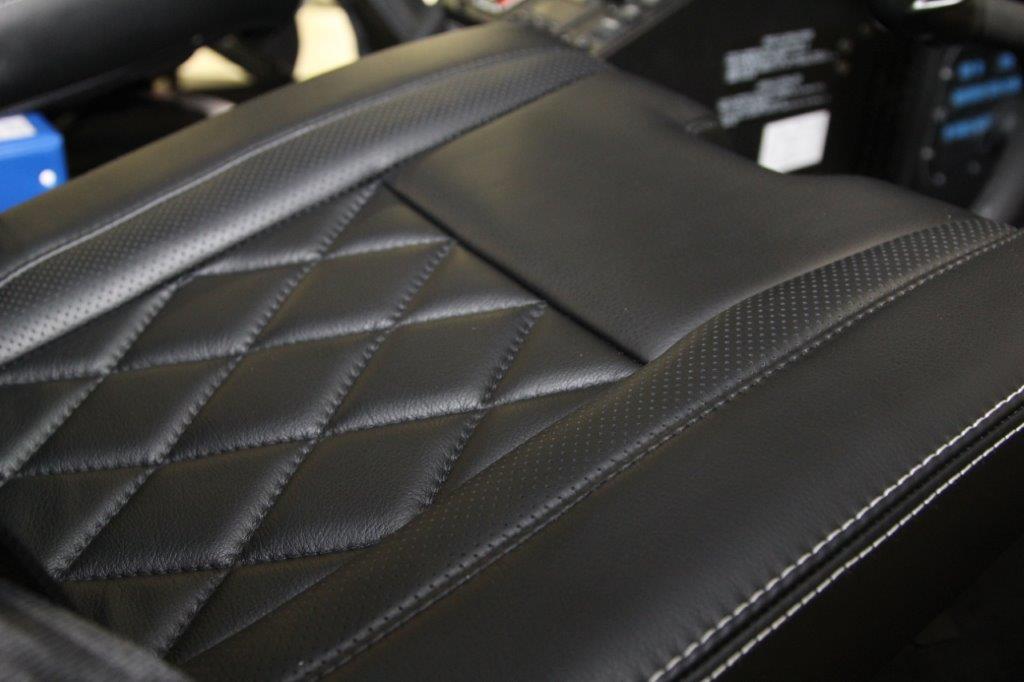

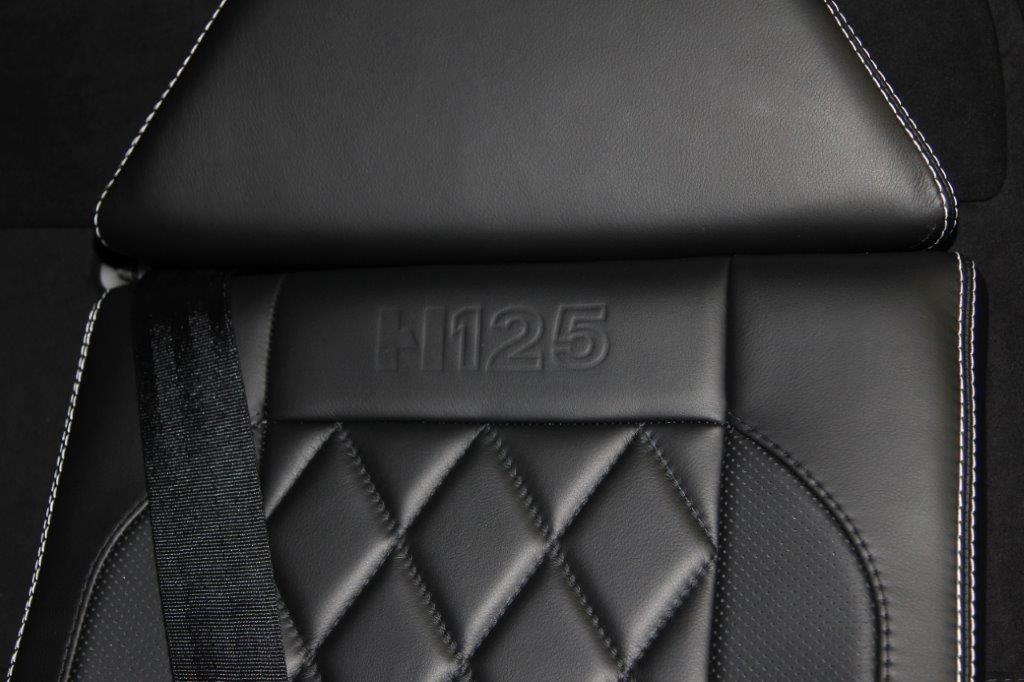

➢Bespoke VIP cabin with leather interior
customisation by AHUK including:
➢5 place seating refurbished including the armrests.
➢ Installation of carpet with bound edges, sewn in heel
pads, and drugget for the rear seating position.
➢Carpet in the rear baggage bay compartments.
➢ Interior door and baggage door painted.
➢2 seat back stowage on the crew seats.
➢Door interior panel and luggage bay painted.
➢Cover lining panels completed in leather/ultra
leather:
• Cockpit and passenger doors trim panels
• Cockpit overhead trim panel
• Rear trim panel/Bulkhead
• Cabin overhead trim panel
• Instrument panel covered in mirage plus
• New placards with a metallic brush finishing
