manufacturer
Airbus
configuration
Air medical
condition
Used
year
2015
time
3882
helicopter location
Norway
serial number
20039
registration number
LN-OOS
listing ID
HT10150
Description

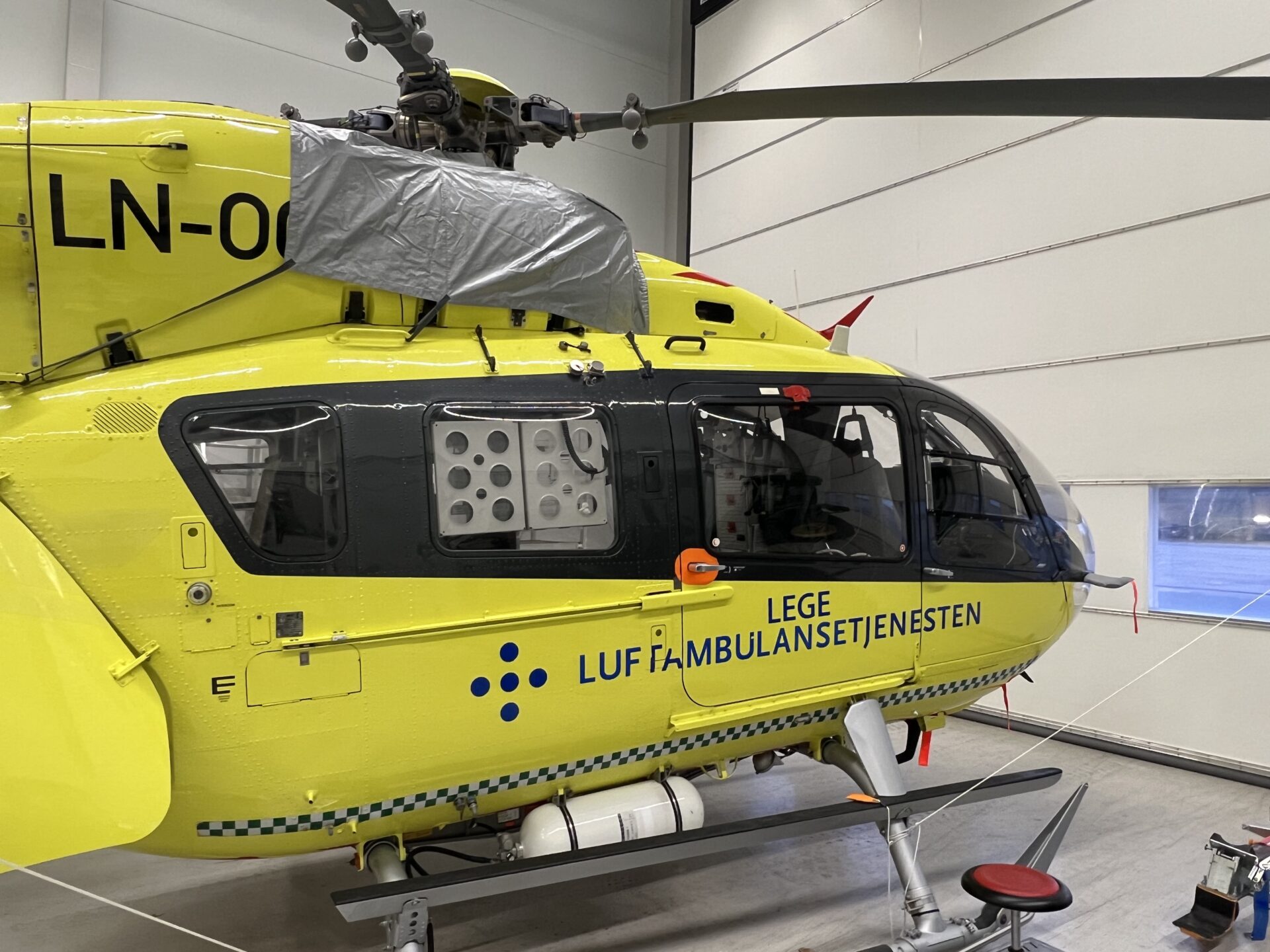

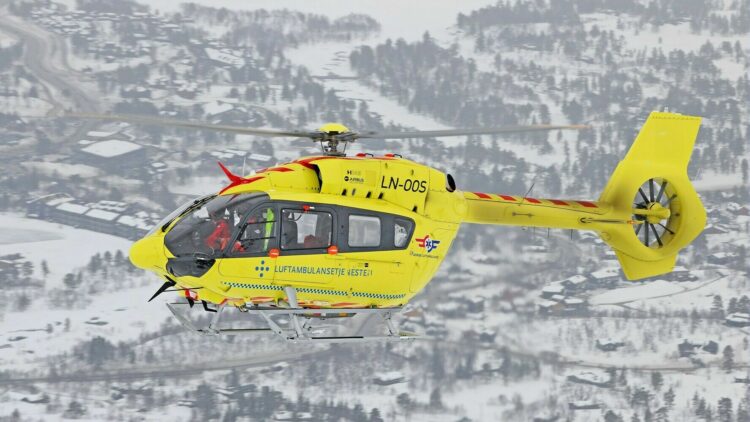

We are proud to present this H145 D2 in HEMS configuration. The aircrafts is NVIS Certified and equipped with SP/DP IFR.
LN-OOS is operated and based in Norway and are fully covered by PÅbH and SbH contracts.
The aircraft includes:
- full PbH and SbH funds
- fresh 800 hrs inspection
- D3 conversion kit may follow
avionics
• Becker DVCS 6100 audio system with 3x ACU 6100, pilot + copilot + cabin
• Transponder GTX 33 ES incl. mode S and ADS-B Out (Garmin)
• Distance Measuring Equipment DME-4000 (Rockwell Collins)
• Marker beacon receiver MKR3300-1 (Becker)
• GPS/NAV/COM GTN 750 (Garmin) pilot and copilot w/COM 16w
• SBAS RNP approach capability
• Flight Display Subsystem (FDS), copilot
• Integrated Helicopter Terrain Awareness System (HTAWS)
• Cockpit Voice and Flight Data Recorder (CVFDR)
• Lightweight Aircraft Recording System (LARS) Vision 1000 (Appaero)
• Cobham dual tetra radio system with dual control head in cockpit and cabin (Provision only, no radios or control panel delivered)
• Search and Rescue weather radar RDR-1600 (Telephonics)
• Traffic Advisory System TAS 620 (Avidyne)
• Synthetic Vision System (SVS)
• Moving map Euronav – RN 7 (Hensholdt Avionics) interfaced with FDS, with the following:
• Sky track option (Iridium)
• GSM/UMTS option
• FLARM option
equipment
• Copilot flight controls
• Battery (44 Ah, 24 V) instead of standard battery
• Electrical Heating System
• Additional electrical unit
• Dual landing & search light, 450W (white & NVG)
• ELT AP-H Integra (ER)
• Night vision (NVIS) certification
• Surface protective coating (Airglaze)
• Cable cutter system
• Fuzz burner for engines, main transmission and Fenestron® gearbox
• Improved heat protection for engine cowlings
• Engine compressor wash kit
• Vector Mast Moment System (VMMS, circular)
• Sliding doors fastener for intermediate and max position
• Tinted sunshades
• Window in clam-shell door LH
• Push-out cabin windows
• Performance improvement kit for bleed air heating system
• Alternating Current (AC) system
• Fuel management system (Fuel flow meters)
• Settling protectors
• External hoist, RH, fixed provisions
• Dual cargo hook
• Tail flood light for clam-shell doors
• Strobe lights
• Emergency floats (Safran)
• Separation curtain for cockpit/cabin
• Active vibration control system
• Washable floor covering for cockpit
• Height adjustable cockpit seats
• Jettisonable cockpit doors
• iPad holders for pilot and copilot with 5VDC USB supply
general characteristics
•Aerolite Medical interior
EASA STC 10052111
EMS P/N 145-0045739-501
• Flightcell DZMx cellular and Iridium satellite system, with GPS tracking solution
• Flightcell external WIFI router
• BAM Ice Grip Plate instead of standard wear plates.
• Wireless intercom system Polycon NG
• Tactical radio VHF-FM NPX-138N - NVG
• Retrofit of Inlet Barrier Filter (IBF) system
• Increased T45 limits on both engine
