manufacturer
Airbus
configuration
VIP
condition
Used
year
2012
time
2670
helicopter location
Brazil
listing ID
HT23052
Description

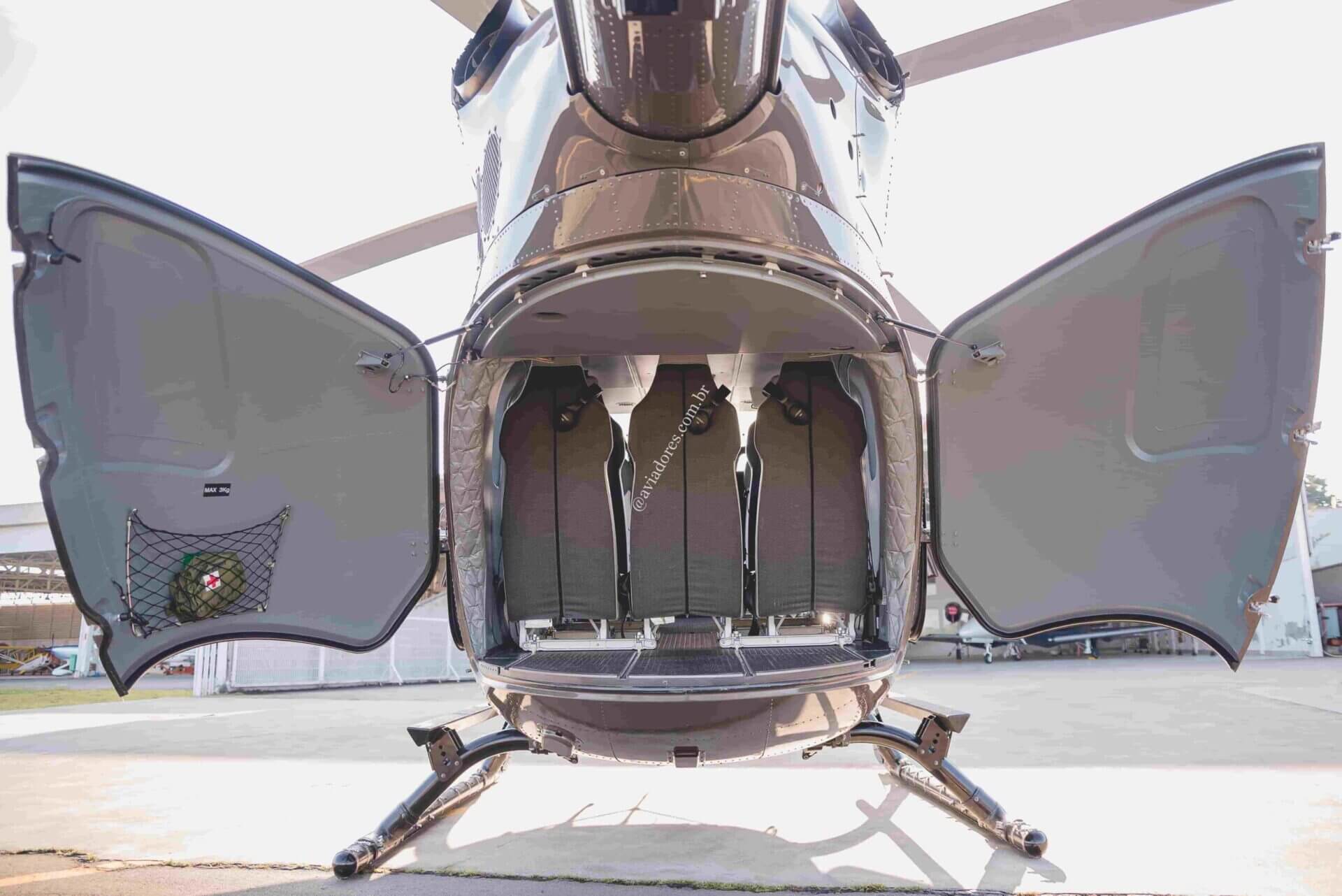

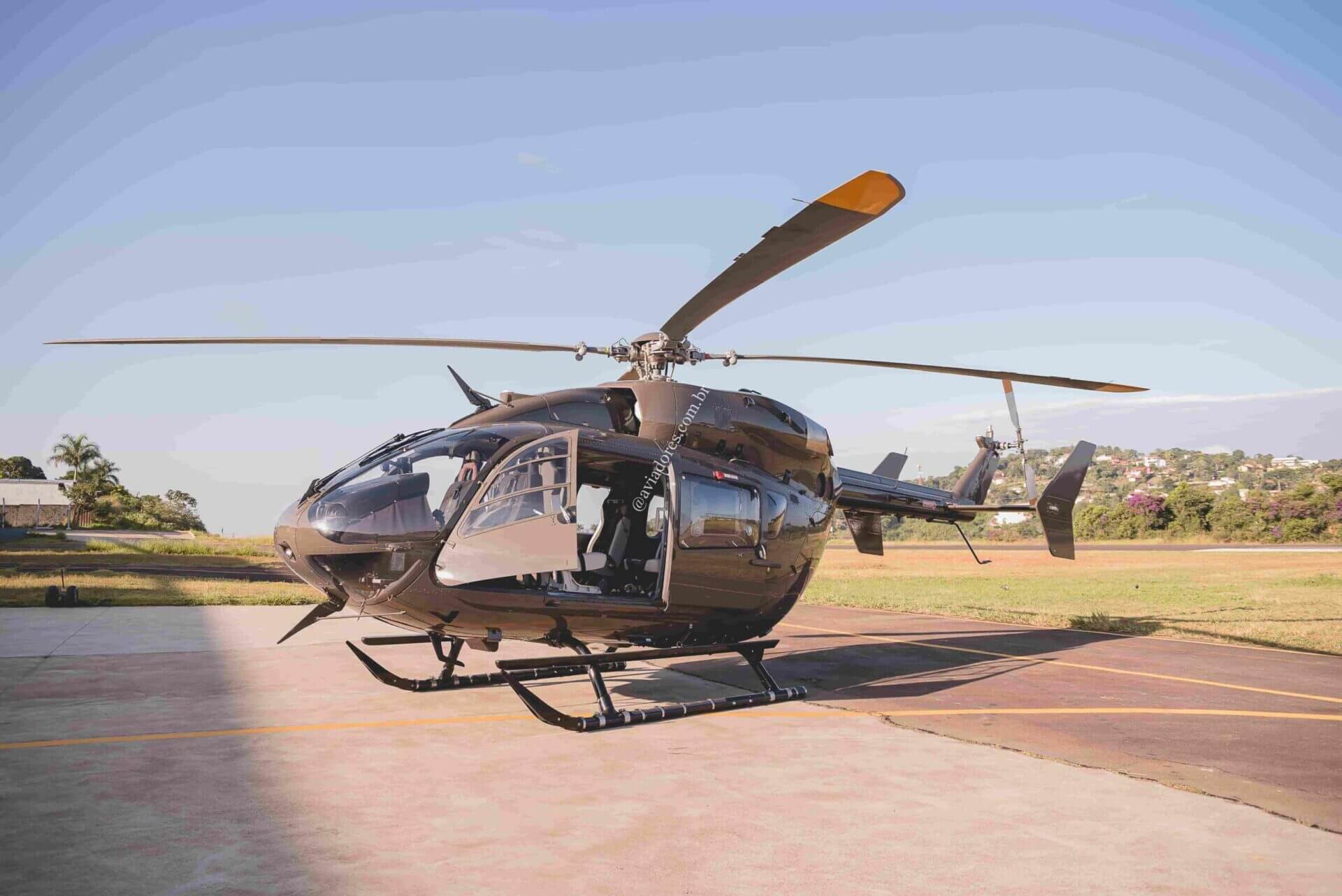

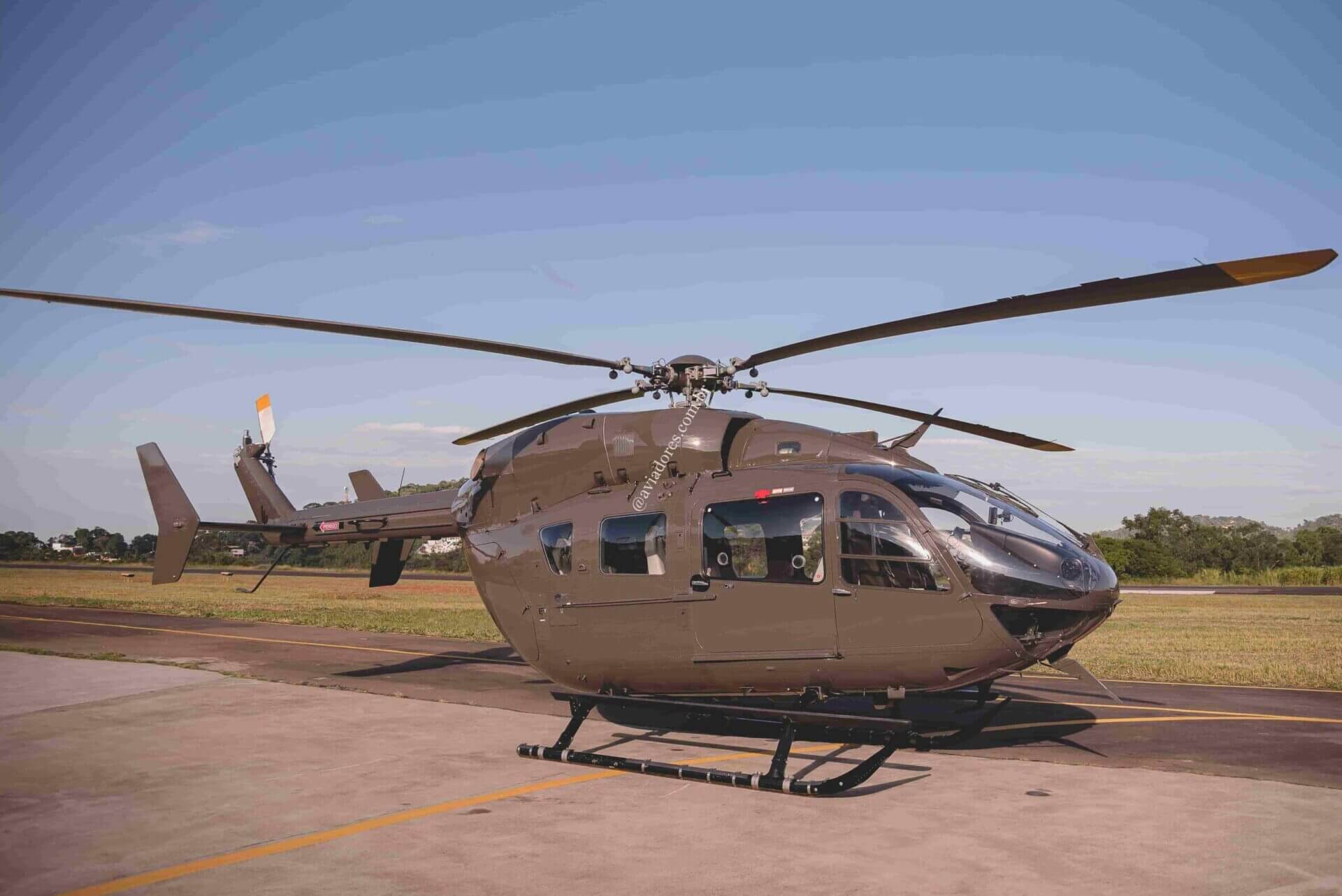

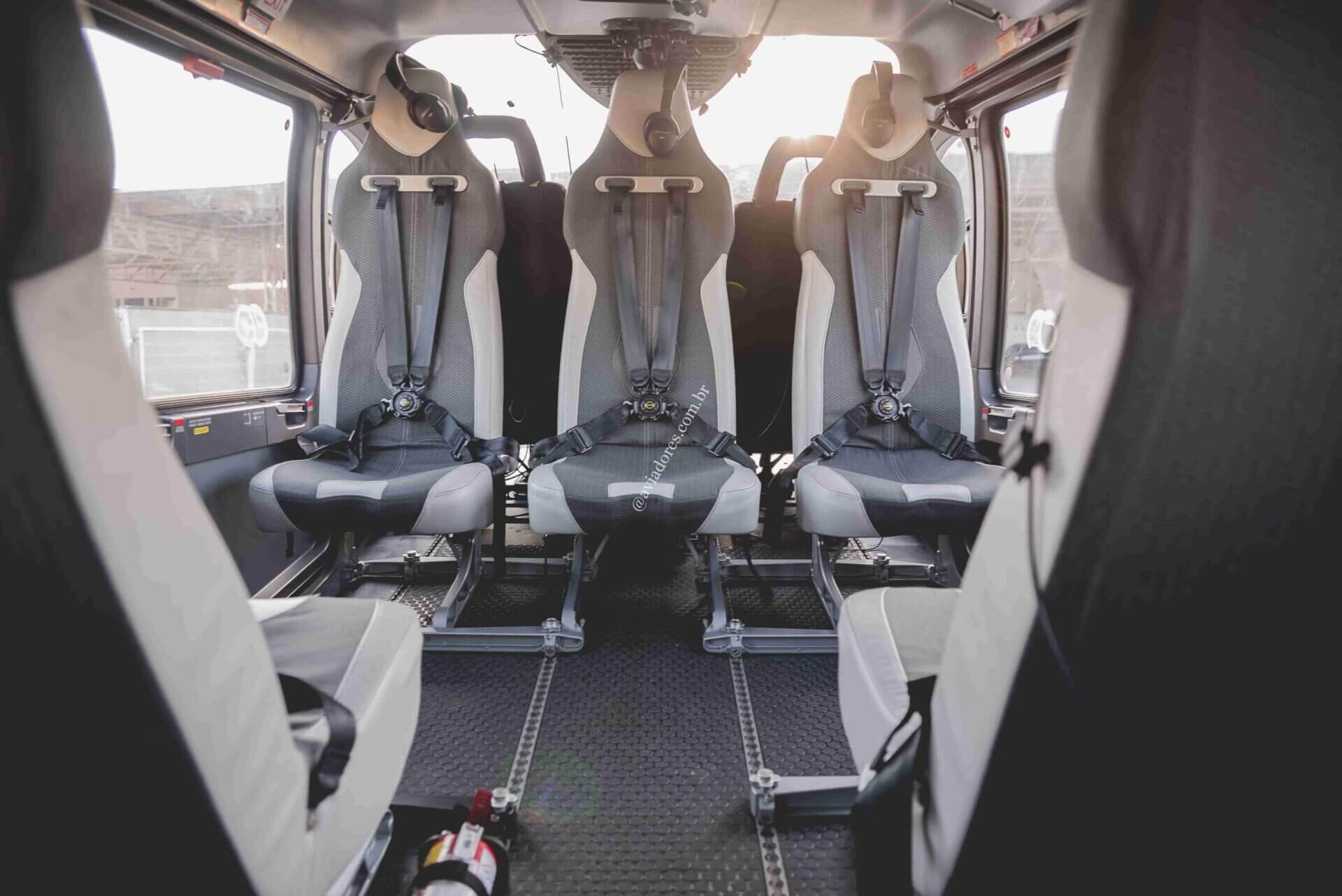

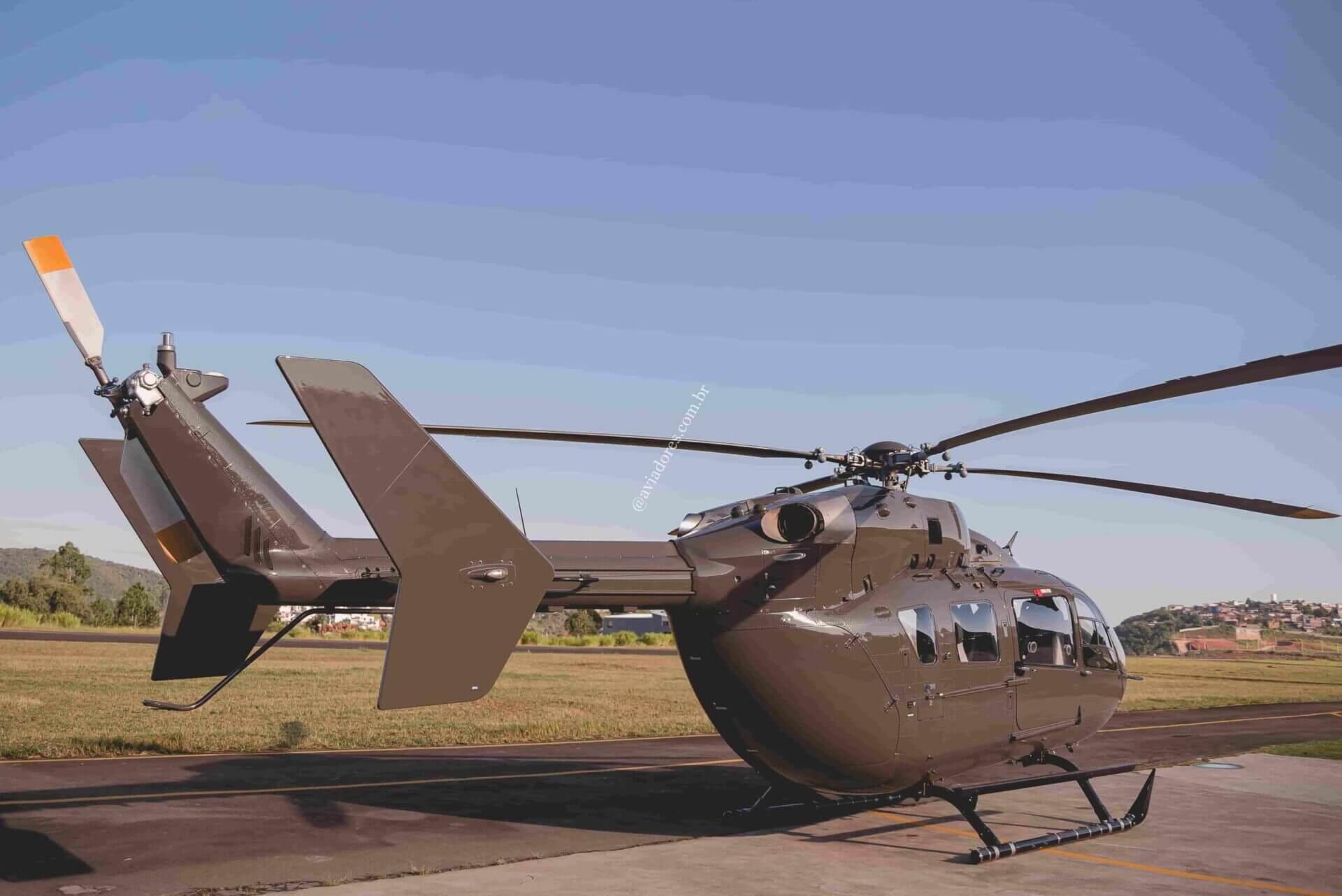

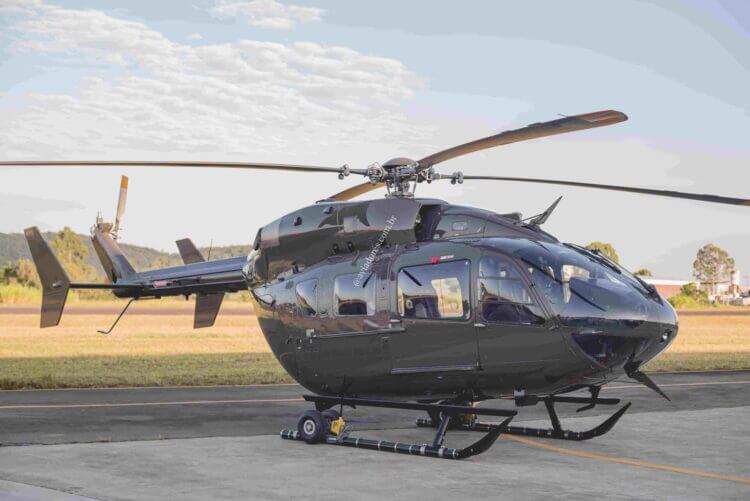

The EC145 is the most cost-effective solution for aerial work. An unobstructed main cabin can be easily reconfigured to maximize mission flexibility, while grab doors on the side and rear sliding doors optimize cabin access.
Modifications/Conversions:

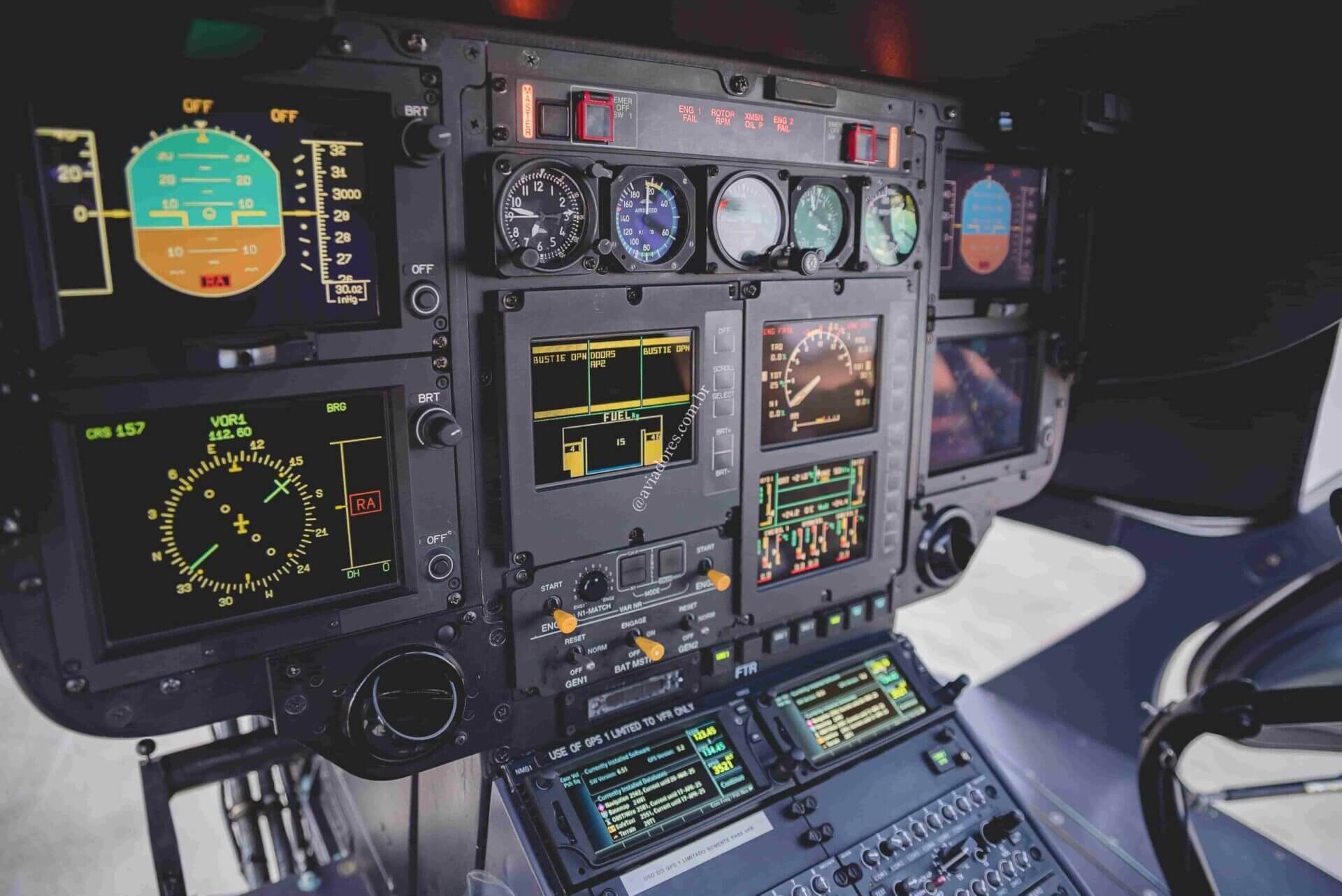

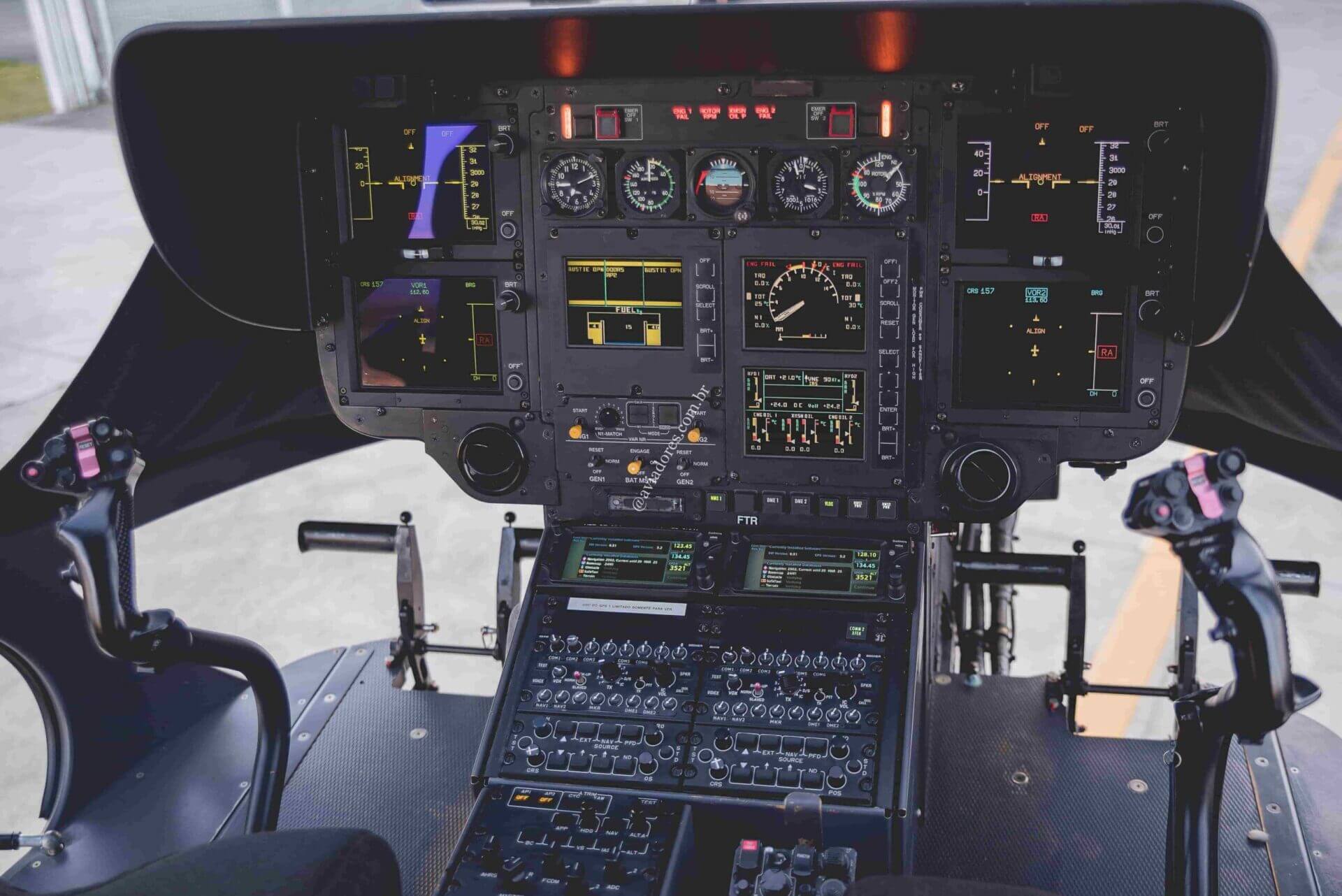

See Sales Brochure under Service Log Drop down Menu. CENTRAL PANEL
Central Panel Display System (CPDS) consisting of two LCD displays
Cautions and Advisories Display (CAD) with digital indication of: Caution and advisory information Fuel quantity indication
Vehicle and Engine Multifunction Display (VEMD) with digital indication of: Engine parameters (engine oil pressure, engine oil temperature) FLI (First Limit Indicator) for TQ, TOT,rN1 as analogue display Main gear box parameters (oil pressure, oil temperature) Dual amp meter for generator; ampere meter for battery Dual voltmeter Outside Air Temperature (OAT) Mast moment indicator
Back-up conventional instruments (2”)
Clock
Stand-by-horizon
Triple (rotor and engines) RPM-indicator
Warning unit
Engine fire warning with fuel emergency shut-off
Warning lights
Aural warning (for each warning, rotor RPM, fire warning)
Fire extinguishing system warning
Master caution light
Main switch panel
DC power control
VARTOMS control
Start switches
Magnetic compass AIR DATA
Dual pitot static system (electrically heated pitot tube and static port)
2 ADC MEGHAS sensors STANDARD INSTRUMENTS (SINGLE PILOT)
Air speed indicator (3”)
Vertical speed indicator (3”)
Encoding altimeter (3”)
Artificial horizon (4”)
Gyro magnetic heading with horizontal situation ind. (3”)
avionics
ADS-B Equipped – Yes
Artificial Horizon – Yes
Radar Altimeter – Yes
Single Pilot Operation – Yes
Autopilot – Yes
Wire Strike Protection System – Yes
See Sales Brochure under Service Logs Drop-down Menu.
Garmin GTX 330 Dual Transponder Garmin 430 GPS/COMM/NAV DME,
CDM-451 *Wulfsberg C5000 V/UHF AM/FM System *Dual Wulfsberg UHF-FM P2000 System (STC SR00036MC-D) Marker Beacon Installation,
KR 21 Radar Altimeter,
KRA405B Nav/ILS/LPV Approach Switching for SMD 45 Displays Thales (4x) SMD 45 Displays Pilot,
Copilot Rear Station Becker ACU 6100 Audio Controls *NVG/NVIS Lighting System (STC SR09303RC-D),
Aircraft NVG Radios/Instrumentation NOTE: Items Marked with “*” may be ITAR Restricted if Aircraft is to be sold outside USA.
equipment
Equipamento Adicional:
Controles duplos – Sim
Gancho de Carga – Sim
Ar Condicionado – Sim
Aquecedor – Sim
Compartimento de bagagem – Sim

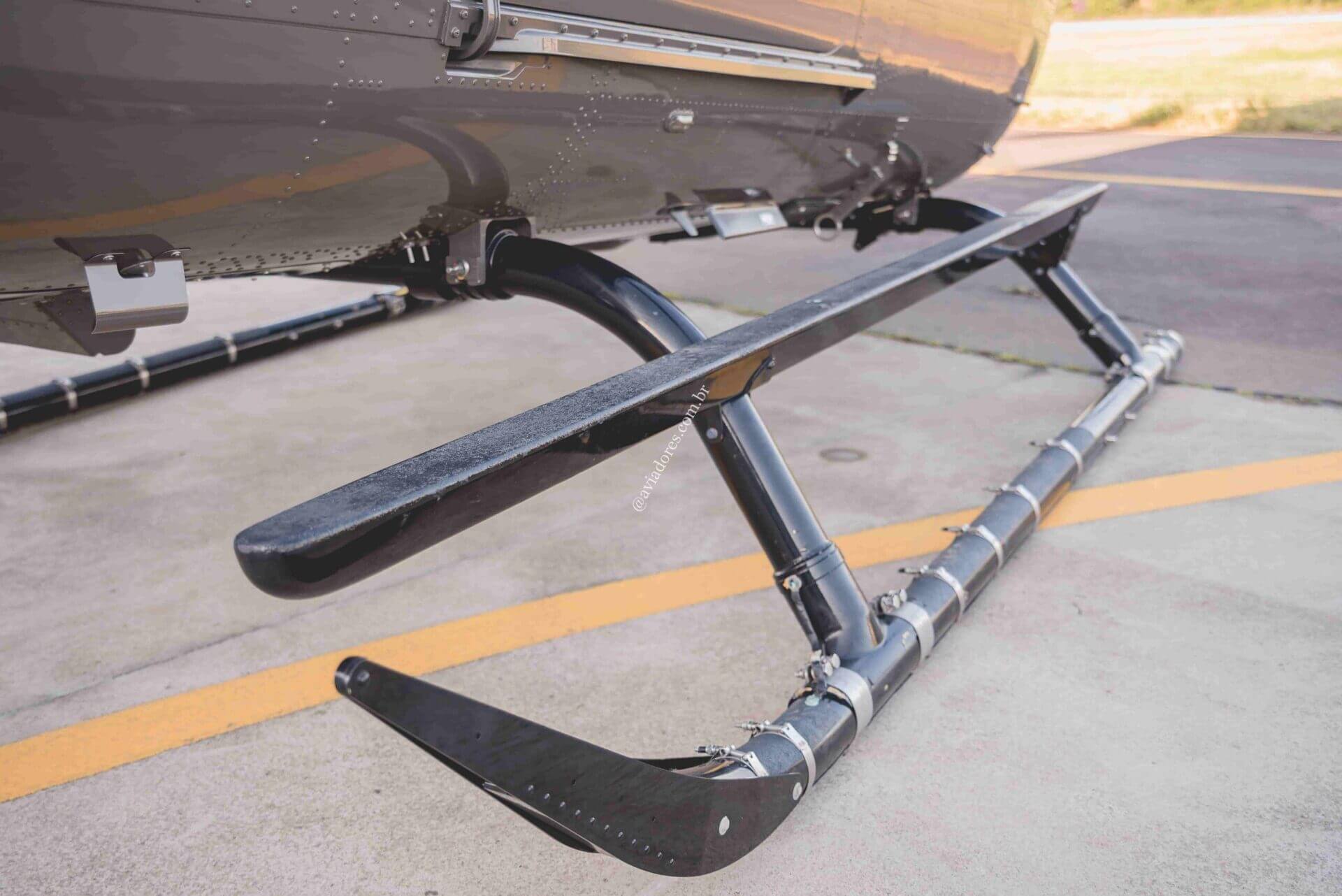

See Sales Brochure under Service Logs Drop down Menu Standard Gear with Full Length Steps Standby Attitude Gyro Engine Fire Detection and Extinguishing System Fuel Flow Display Cargo Sling System Fixed Provisions Fixed Provisions Hoist,
Right Side Cable Cutter System (Wire Strike) Rotor Brake System 3-Axis Autopilot with Yaw SAS Controllable Landing/Search Light,
200W/400W External Lashing Points,
60 Knots Anti Collision LED Light (STC SR09303RC-D) Position LED Lights (STC SR09302RC-D) 44 AH Lead Acid Battery (STC SR09298RC-D) Dual Windshield Wiper System Carbide Skid Protectors,
Brauer (STC SR03936AT)
