manufacturer
Mirocopter
configuration
Private
condition
New
year
2026
helicopter location
United States
serial number
0026012
registration number
N/A
listing ID
HT25597
Description

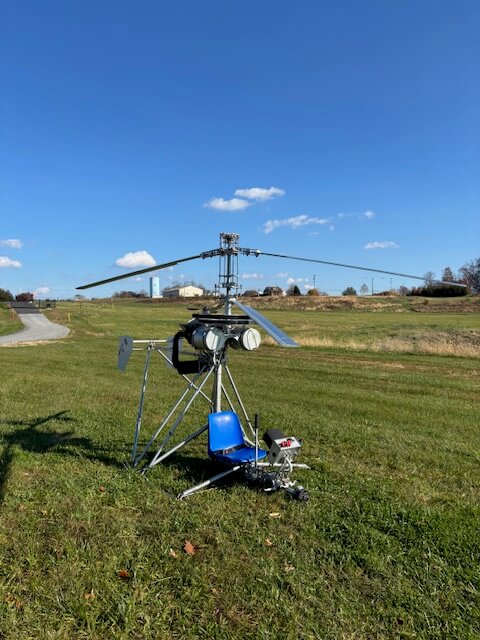

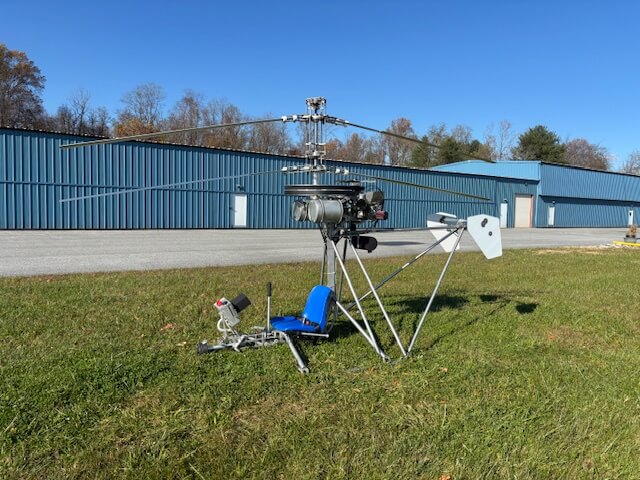

The Small Coaxial Helicopter (SCH-2A) is one of the lightest manned coaxial helicopters in the world and is compliant to US FAR Part 103 Ultralight Vehicle rules. The SCH-2A is an innovative coaxial helicopter developed and tested for more than 10 years. SCH-2A helicopter is sold fully assembled and tested. The SCH-2A is a true helicopter with standard helicopter command inputs. Vertical thrust is achieved by collective blade pitch control of both rotors. Cyclic blade pitch control of both rotors provides directional control. Yaw control is provided by moving two tail rudders. Because there is no tail rotor the SCH-2A can lift more weight and operate out of a smaller area. The SCH-2A has very good flight characteristics including effective autorotation. The SCH-2A is an innovative coaxial helicopter developed and tested for more than 10 years. SCH-2A helicopter is sold fully assembled and tested. The SCH-2A is a true helicopter with standard helicopter command inputs. Vertical thrust is achieved by collective blade pitch control of both rotors. Cyclic blade pitch control of both rotors provides directional control. Yaw control is provided by moving two tail rudders. Because there is no tail rotor the SCH-2A can lift more weight and operate out of a smaller area. The SCH-2A has very good flight characteristics including effective autorotation.
avionics
Instrument panel on Small Coaxial Helicopter SCH-2A is Smarteh 7” LCD color resistive touch screen. Instrument panel Metric or Imperial units can be selected. Various parameters can be set and warnings and alarms are recorded. Instrument panel shows Engine and Rotor rpm, cylinder heads and exhaust gas temperatures, air temperature, battery voltage, date and time, trip time, speed and altitude.
engine 1
Small Coaxial Helicopter SCH-2A is powered by proven Fiate MZ202 two cylinder, dual ignition, two stroke gasoline engine. MZ202 engine can provide more than 60Hp/44kW of power at 5800 rpm what is nominal engine rotation speed on SCH-2A helicopter. Full Fiate MZ202 engine package with electric starter, electric generator, dual ignition, exhaust system and modified fan cooling system weights only 30kg/66lbs.
